Refrigerant Oil Adding - INGENIUM I4 2.0L Diesel/V6 S/C 3.0L Petrol (G1221325): Check

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: If other Air Conditioning (A/C) components are being renewed in addition to the A/C compressor, there is no need to top up with additional refrigerant oil, apart from filling the compressor.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
This step only needs to do when removing the A/C compressor.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

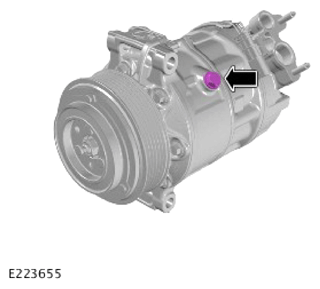

Remove the drain plug.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

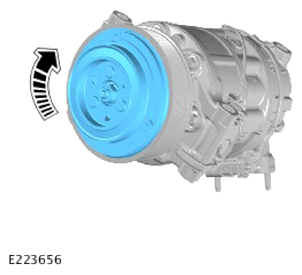

Rotate the A/C compressor shaft at least 6 to 8 turns when draining the refrigerant oil.
CAUTION: The refrigerant oil top-up quantity must not exceed the refrigerant oil fill quantity.

Top up with the calculated quantity of new refrigerant oil.

Refer to: SPECIFICATIONS
