Air Conditioning System

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

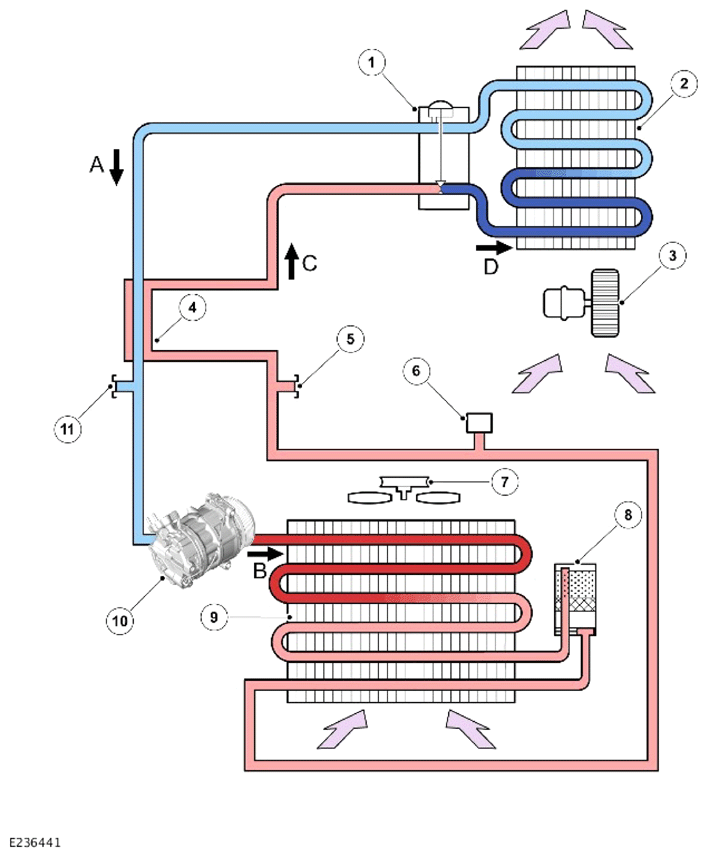

G13886094Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

A = Low Pressure (LP) VAPOR: B = High Pressure (HP) VAPOR: C = HP  LIQUID: D = LP  VAPOR

ITEM DESCRIPTION
1 Thermostatic Expansion Valve (TXV)
2 Evaporator
3 Blower
4 Internal Heat Exchanger (If installed)
5 HP  servicing connection
6 Refrigerant pressure sensor
7 Electric cooling fan
8 Air conditioning receiver drier
9 Air conditioning condensor
10 Air conditioning compressor
11 LP  servicing connection
