Variable Camshaft Timing Solenoid (G2415554): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Some components shown removed for clarity.

If this component is being renewed because of a customer complaint, make sure to follow the electronic engine control system 'Diagnosis and Testing' procedure.
Refer to: ELECTRONIC ENGINE CONTROLS
Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L DIESEL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

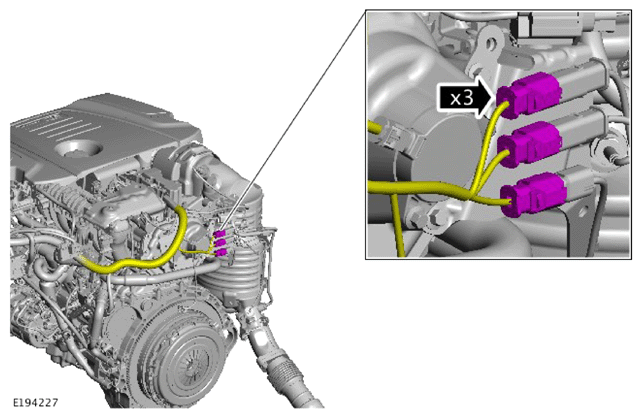

Disconnect the 3 electrical connectors.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

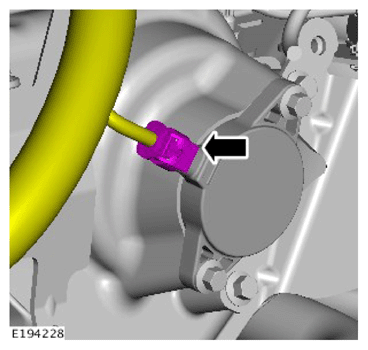

Disconnect the electrical connector from the Variable Camshaft Timing (VCT) solenoid.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

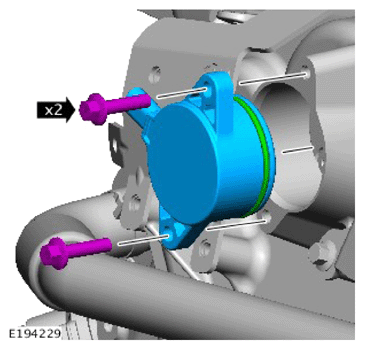

Remove the 2 bolts.
Remove the VCT solenoid.
Examine the O-ring seal replace if damaged or worn.
