Variable Camshaft Timing Solenoid (G2415554): Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

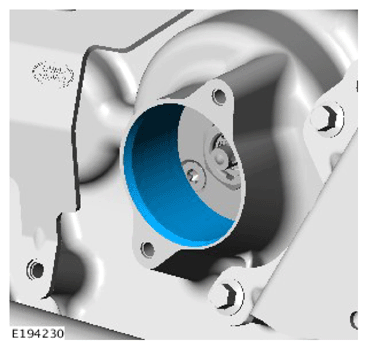

  1. G13973928Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Lubricate the bore with clean engine oil.

    • Install the VCT  solenoid.
    • Install and tighten the 2 bolts.

    Torque  : 9Nm

  3. Connect the electrical connector to the VCT  solenoid.
  4. Connect the 3 electrical connectors.
  5. Install the engine cover.

    Refer to: ENGINE COVER - INGENIUM I4 2.0L DIESEL
