Piston Cooling Oil Jet Solenoid (G2165238): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  2. Remove the thermostat housing.

    Refer to: THERMOSTAT

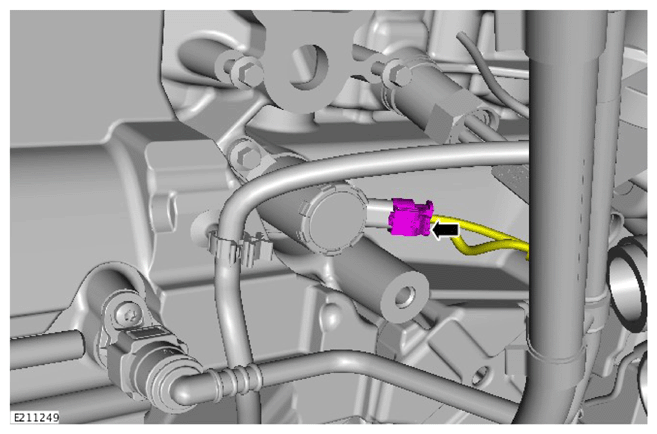

  3. G13911923Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the electrical connector.

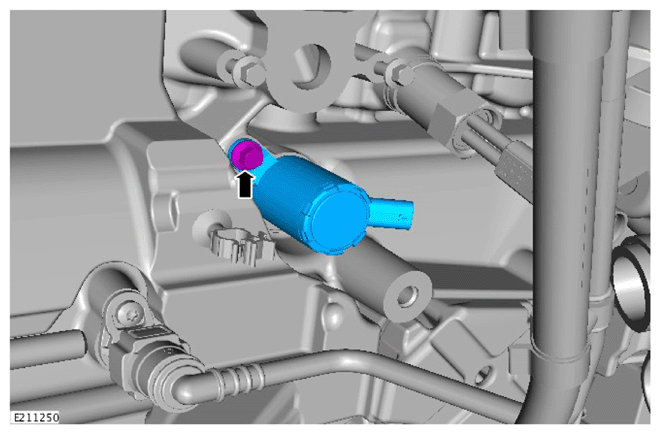

  4. G13911924Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the Piston Cooling Jet (PCJ) Solenoid.
