Mass Air Flow Sensor (G1796534): Removal
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Removal steps in this procedure may contain installation details.
- Remove the air cleaner.
Refer to: AIR CLEANER

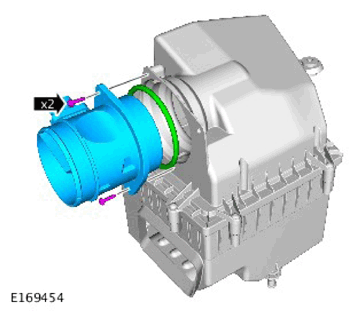

- Remove the 2 screws.
- Remove the Mass Air Flow (MAF) sensor.
- Inspect the O-ring seal and replace if damaged.
