Heated Oxygen Sensor (G1817215): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe due care when working near a hot exhaust system.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the engine cover.
Refer to: ENGINE COVER - INGENIUM I4 2.0L DIESEL
CAUTION:
- Make sure the H02S wiring harness is not twisted more than 180 degrees and is not in contact with the exhaust.
- Make sure that the mating faces are clean and free of foreign material.
- Make sure the anti-seize compound does not contact the heated oxygen sensor (HO2S) tip.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

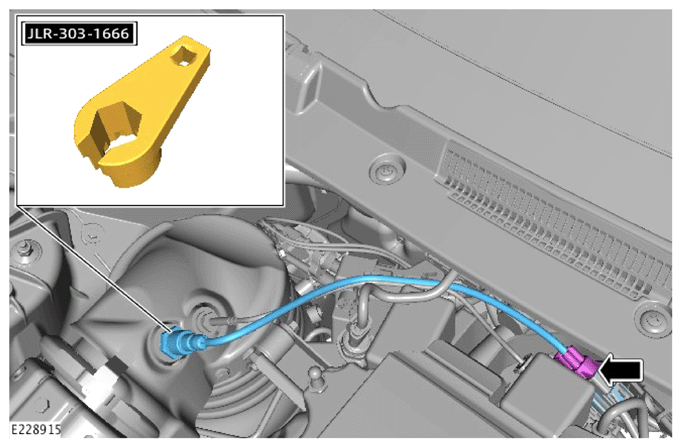

Disconnect the electrical connector.
Using the special tool, remove the heated oxygen sensor (HO2S).

Special Tool(s): JLR-303-1666
