Exhaust Gas Temperature Sensor - INGENIUM I4 2.0L Diesel - Mid, Low Power (G1798849): Removal
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Observe due care when working near a hot exhaust system.
NOTE:
- Removal steps in this procedure may contain installation details.
- Engine shown removed for clarity.
- Some variation in the illustrations may occur, but the essential information is always correct.
- Refer to: ENGINE COVER - INGENIUM I4 2.0L DIESEL
-
CAUTION: Before disconnecting or removing the components, make sure the area around the joint faces and connections are clean. Plug open connections to prevent contamination.

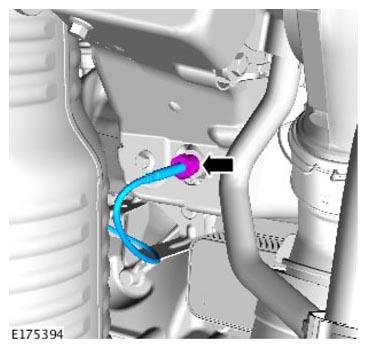

Torque : 35Nm
