Diesel Exhaust Fluid Heater Control (G2206975): Removal
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the startup battery ground cable.
Refer to: SPECIFICATIONS
- Remove the loadspace trim panel.
Refer to: LUGGAGE COMPARTMENT FLOOR TRIM PANEL
- Disconnect the electrical connector.

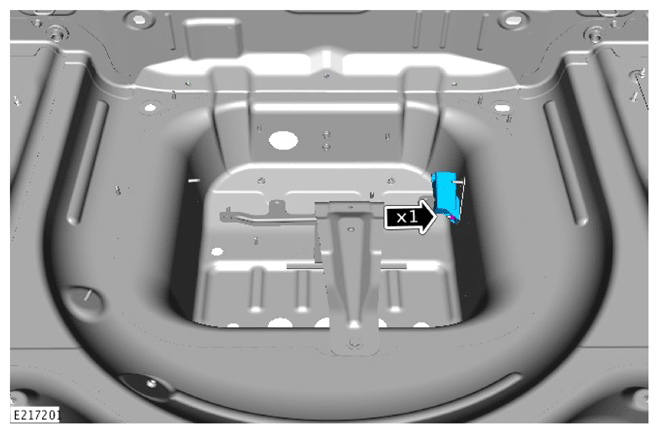

- Remove the retaining bolt.
- Remove the diesel exhaust fluid heater control.
