Cylinder Head Temperature Sensor (G1856652): Removal
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
Be prepared to collect escaping coolant.
NOTE:
- Some variation in the illustrations may occur, but the essential information is always correct.
- Some components shown removed for clarity.
- Removal steps in this procedure may contain installation details.
-
CAUTION: Make sure to support the vehicle with axle stands.
Raise and support the vehicle.
- Refer to: COOLING SYSTEM DRAINING AND VACUUM FILLING
- Refer to: COOLANT EXPANSION TANK
- Refer to: RIGHT ENGINE MOUNT - INGENIUM I4 2.0L DIESEL - MID, LOW POWER
-

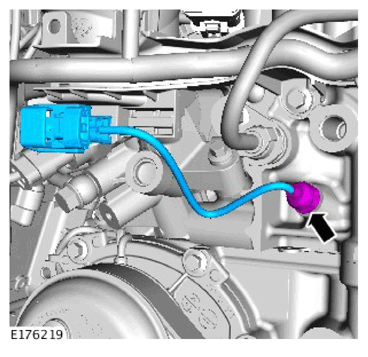

CAUTION: Discard the cylinder head temperature sensor.
Renew Part: Cylinder head temperature sensor Quantity: 1 .
Torque : 10Nm
