Cylinder Block Temperature Sensor (G1856651): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Removal steps in this procedure contains installation details.
NOTE: Some variation in the illustrations may occur, but the essential information is always correct.
  1. Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
  2. Refer to: THERMOSTAT

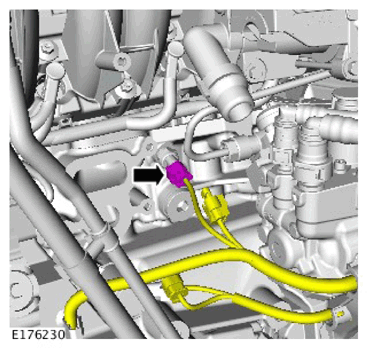

  3. G11308427Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
  4. CAUTION: Discard the cylinder block temperature sensor.

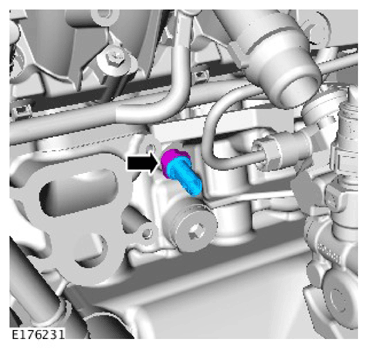

    G11308428Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 10Nm
