Clutch Pedal Position Sensor (G1858363): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

Before disconnecting any components, make sure the area is clean and free from foreign material. When disconnected all openings must be sealed.
Brake fluid will damage paint finished surfaces. If spilled, immediately remove the fluid and clean the area with water.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Remove the cowl panel.
Refer to: COWL PANEL
Remove the instrument panel lower trim panel.
Refer to the appropriate repair information
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

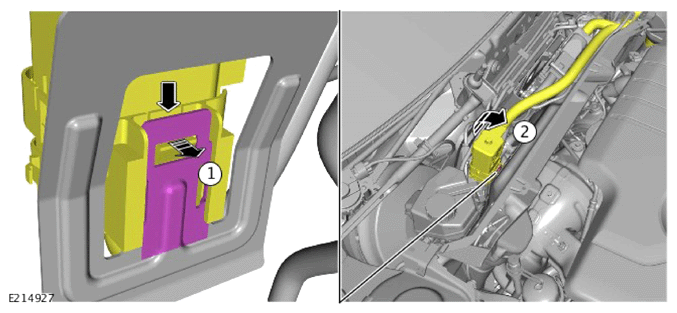

Reposition the engine wiring harness.
WARNING: Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

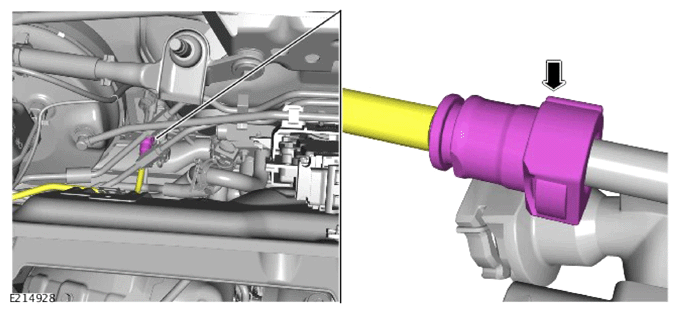

Disconnect the low pressure pipe from the clutch master cylinder.
WARNING: Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

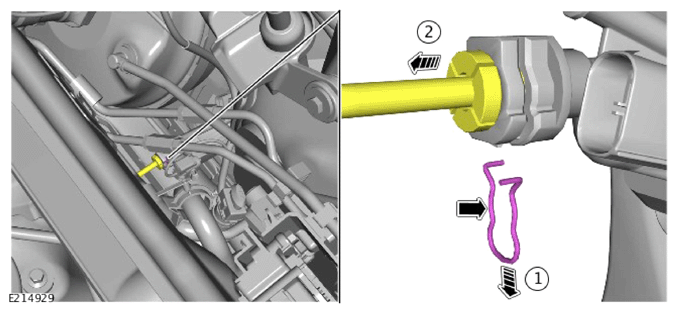

- Remove the retainer.
- Disconnect the high pressure pipe from the clutch master cylinder.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

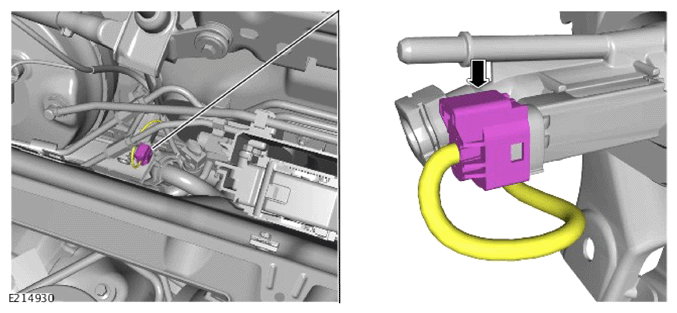

Disconnect the electrical connector.
Open the driver's door.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

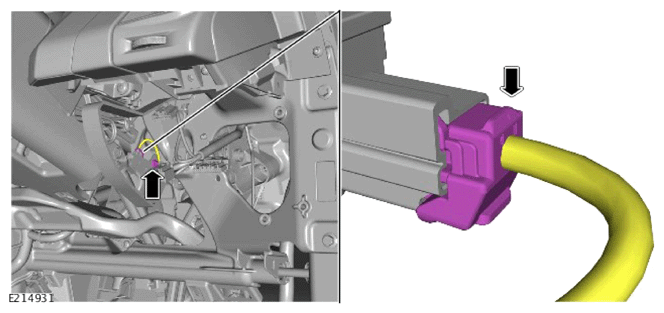

Disconnect the electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

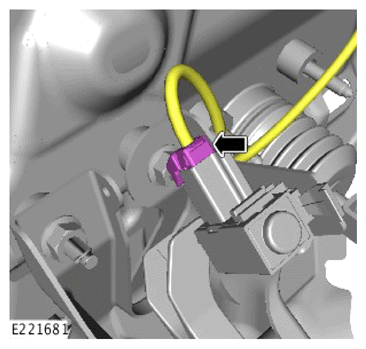

Disconnect the clutch pedal position sensor electrical connector.
WARNING: Fluid loss is unavoidable, use absorbent cloth or a container to collect the fluid.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

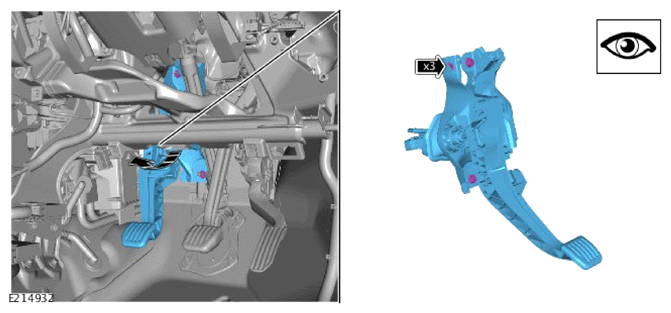

- Remove the 3 nuts.
- Remove the clutch pedal assembly.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

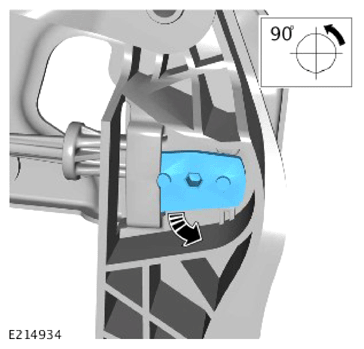

Rotate and remove the guide pin.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

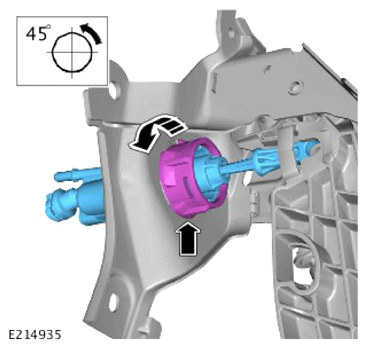

Rotate and remove the clutch master cylinder from the pedal assembly.
