Glow Plug Control Module
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

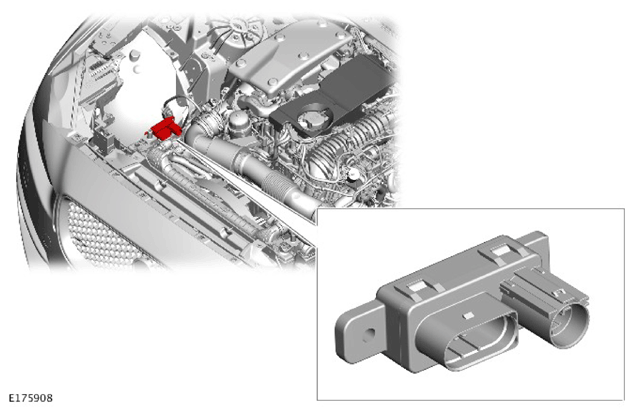

The glow plug control module is located in the right side of the engine compartment, below the Engine Junction box (EJB).
There are 3 phases of glow plug heating:
- Pre heating
- Crank heating
- Post heating.
The Powertrain Control Module (PCM) determines the power levels for each phase and heating times from the Engine Coolant Temperature (ECT) sensors.
For additional information, refer to: GLOW PLUG SYSTEM
