Charge Air Temperature Sensor

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

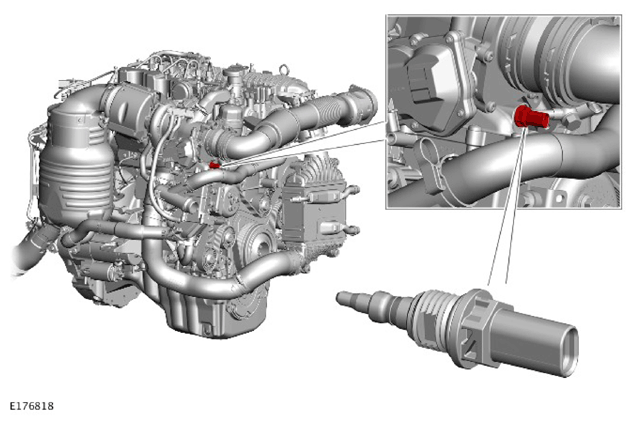

G11308380Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

The charge air temperature sensor is located in the Low Pressure (LP) Exhaust Gas Recirculation (EGR) cooler outlet to the LP EGR valve. The sensor receives a reference voltage from the Powertrain Control Module (PCM). The sensor returns a signal relative to the exhaust gas output from the LP EGR cooler.
