Charge Air Cooler Temperature Sensor
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

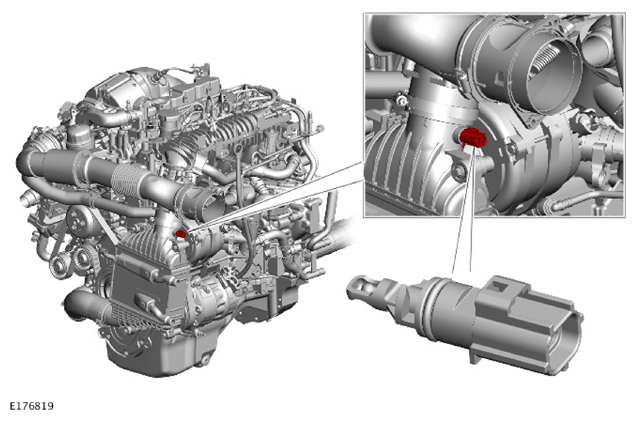

The charge air cooler temperature sensor is located in the outlet of the charge air cooler. The sensor is a quick fit component which is pushed into the charge air cooler port and rotated through 90° to lock. An O-ring seal attached to the charge air cooler temperature sensor prevents leakage.
The temperature sensor is a Negative Temperature Coefficient (NTC) type sensor. The temperature sensor receives a reference voltage from the Powertrain Control Module (PCM) and returns a signal proportional to the intake air temperature.
