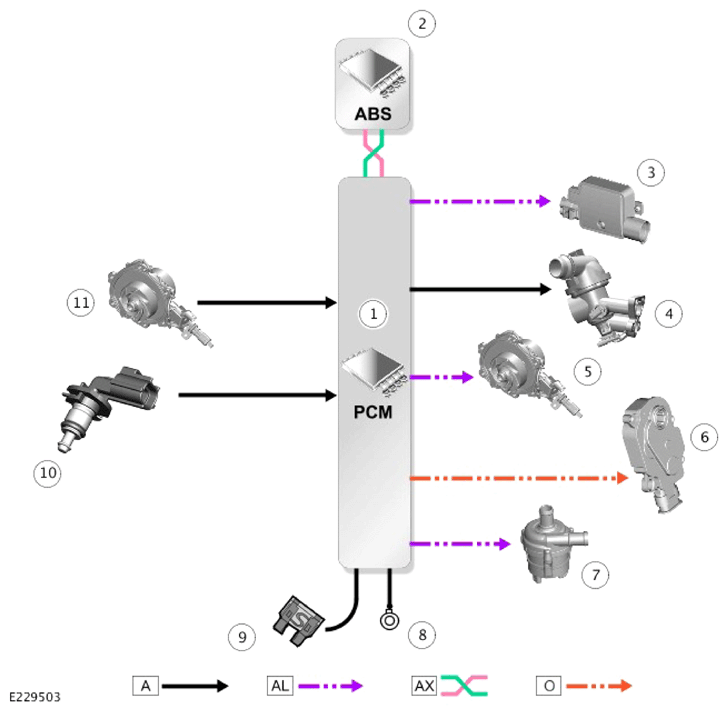

Control Diagram - 5 Of 7 - Engine Cooling System Components
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: AL = PULSE WIDTH MODULATION (PWM): AX = FLEXRAY BUS: O = LOCAL INTERCONNECT NETWORK (LIN) BUS.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Anti-lock Brake System (ABS) control module |
| 3 | Engine cooling fan control module |
| 4 | Electric thermostat heater element |
| 5 | Variable coolant pump solenoid |
| 6 | Active grille air shutter motor |
| 7 | Charge air cooler coolant pump |
| 8 | Ground |
| 9 | Power supply |
| 10 | Radiator outlet Engine Coolant Temperature (ECT) sensor |
| 11 | Variable coolant pump shroud position sensor |
