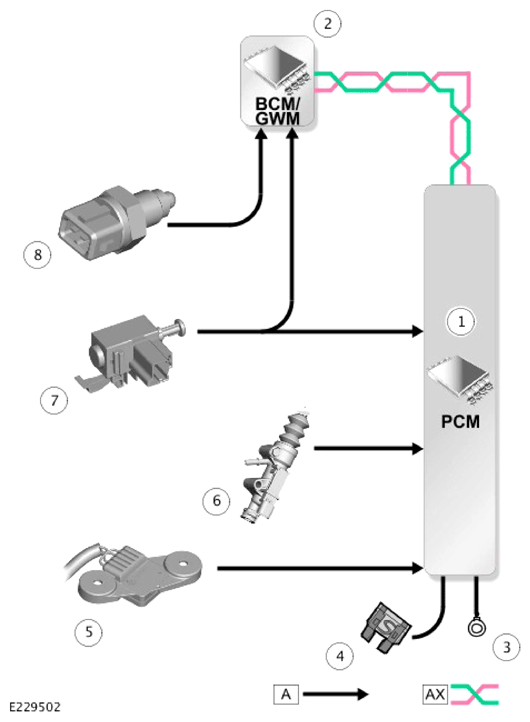

Control Diagram - 4 Of 7 - Clutch Control Components - Vehicles With Manual Transmission
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
 Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
|
A = HARDWIRED: AX = FLEXRAY BUS.
| ITEM |
DESCRIPTION |
| 1 |
Powertrain Control Module (PCM) |
| 2 |
Body Control Module/Gateway Module (BCM/GWM) |
| 3 |
Ground |
| 4 |
Power supply |
| 5 |
Gear selector position sensor |
| 6 |
Clutch pedal position sensor |
| 7 |
Clutch Bottom Of Travel (BOT) switch |
| 8 |
Reverse switch |
