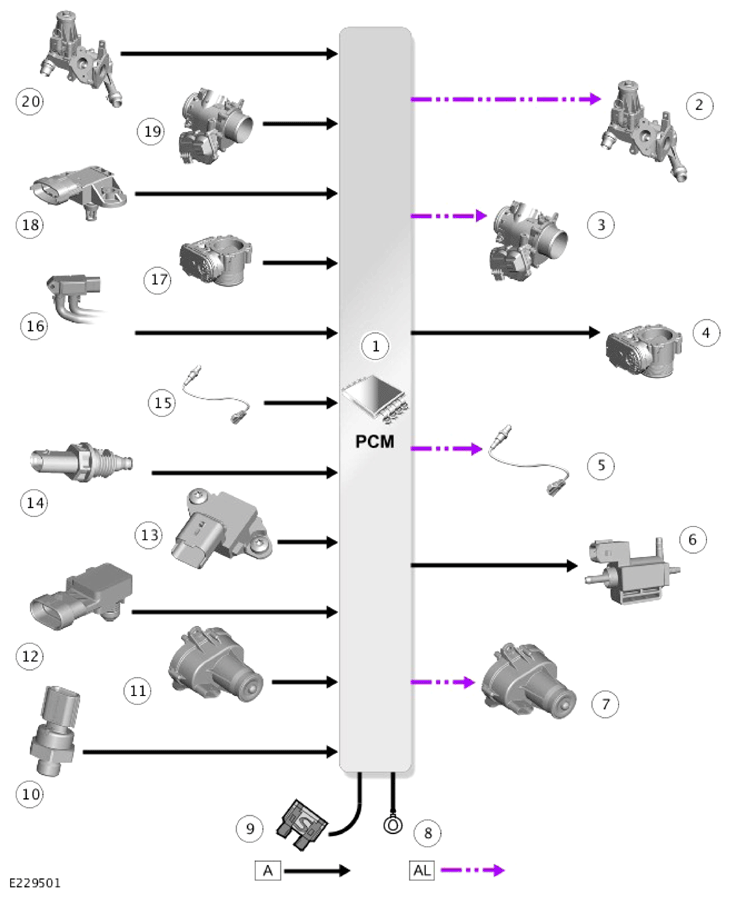

Control Diagram - 3 Of 7 - Engine Emission Control System Components
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: AL = PULSE WIDTH MODULATION (PWM).
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | High Pressure (HP) Exhaust Gas Recirculation (EGR) valve motor |
| 3 | Low Pressure (LP) EGR valve motor |
| 4 | Electric throttle actuator |
| 5 | Heated Oxygen Sensor (HO2S) heater element |
| 6 | HP EGR cooler bypass valve solenoid (if equipped) |
| 7 | Variable swirl valve actuator (if equipped) |
| 8 | Ground |
| 9 | Power supply |
| 10 | HP EGR inlet pressure sensor |
| 11 | Variable swirl valve actuator position sensor (if equipped) |
| 12 | Crankcase pressure sensor (if equipped) |
| 13 | HP EGR cooler bypass valve position sensor (if equipped) |
| 14 | HP EGR charge air temperature sensor (if equipped) |
| 15 | HO2S |
| 16 | Low Pressure (LP) Exhaust Gas Recirculation (EGR) differential pressure sensor |
| 17 | Throttle Position Sensor (TPS) |
| 18 | Manifold Absolute Pressure and Temperature (MAPT) sensor |
| 19 | LP EGR valve position sensor |
| 20 | HP EGR valve position sensor |
