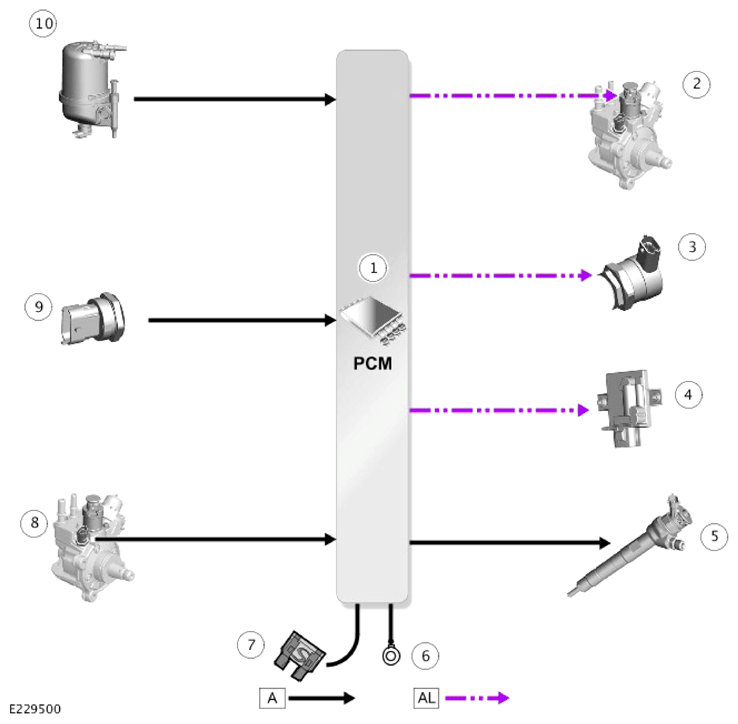

Control Diagram - 2 Of 7 - Fuel System Components
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: AL = PULSE WIDTH MODULATION (PWM).
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Fuel metering valve |
| 3 | Fuel rail Pressure Control Valve (PCV) |
| 4 | Fuel Pump Driver Module (FPDM) |
| 5 | Fuel injector (quantity 4) |
| 6 | Ground |
| 7 | Power supply |
| 8 | Fuel temperature sensor |
| 9 | Fuel Rail Pressure (FRP) sensor |
| 10 | Water In Fuel (WIF) sensor |
