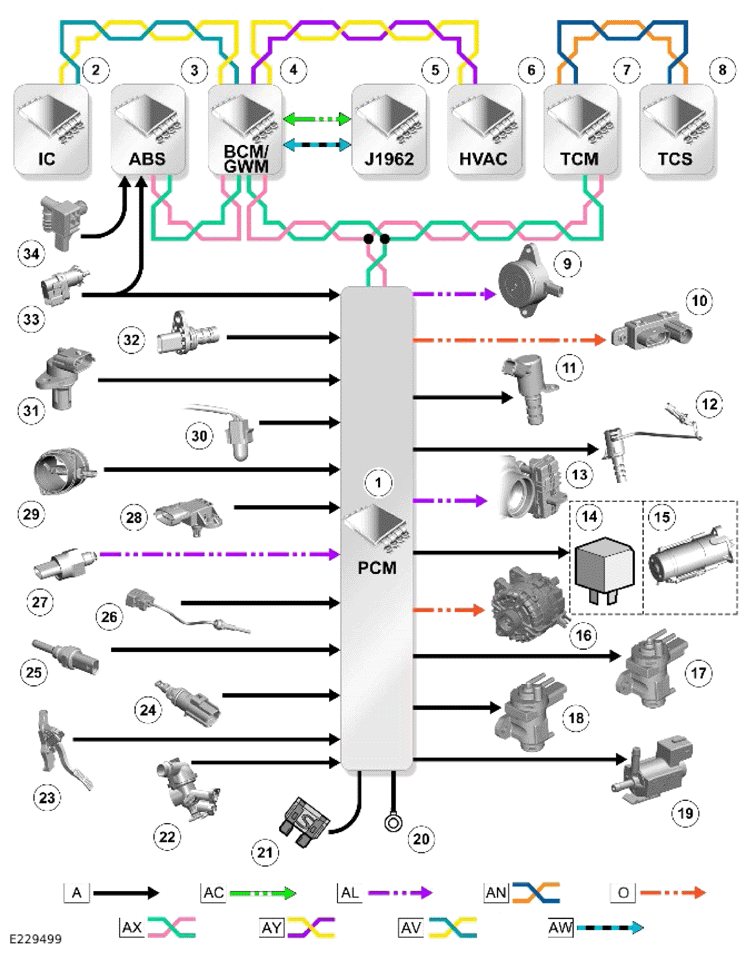

Control Diagram - 1 Of 7 - Common Components
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
A = HARDWIRED: AC = DIAGNOSTIC: AL = PULSE WIDTH MODULATION (PWM): AN = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWERTRAIN SYSTEMS BUS: AX = FLEXRAY BUS: AY = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) POWER MODE ZERO SYSTEMS BUS: AV = HIGH SPEED (HS) CONTROLLER AREA NETWORK (CAN) COMFORT SYSTEMS BUS: AW = BROADR-REACH® ETHERNET.
| ITEM | DESCRIPTION |
|---|---|
| 1 | Powertrain Control Module (PCM) |
| 2 | Instrument Cluster (IC) |
| 3 | Anti-lock Brake System (ABS) control module |
| 4 | Body Control Module/Gateway Module (BCM/GWM) |
| 5 | Diagnostic connector (J1962) |
| 6 | HVAC Control Module |
| 7 | Transmission Control Module (TCM) (if equipped) |
| 8 | Transmission Control Switch (TCS) (if equipped) |
| 9 | Variable Camshaft Timing (VCT) actuator |
| 10 | Glow plug control module |
| 11 | Piston cooling oil jets solenoid |
| 12 | Oil pressure control solenoid |
| 13 | Variable Geometry Turbine (VGT) vane actuator |
| 14 | Starter motor solenoid |
| 15 | Starter motor |
| 16 | Generator |
| 17 | Electronic Vacuum Regulating Valve (EVRV) - Turbine Shut Off Valve (TSOV) (if equipped) |
| 18 | EVRV - Turbine Bypass Valve (TBV) (if equipped) |
| 19 | Active engine mount solenoid |
| 20 | Ground |
| 21 | Power supply |
| 22 | Engine Coolant Temperature (ECT) sensor |
| 23 | Accelerator Pedal Position (APP) sensor |
| 24 | Charge air cooler temperature sensor |
| 25 | Cylinder block temperature sensor |
| 26 | Cylinder head temperature sensor |
| 27 | Oil pressure and temperature sensor |
| 28 | Manifold Absolute Pressure and Temperature (MAPT) sensor |
| 29 | Mass Air Flow and Temperature (MAFT) sensor |
| 30 | Ambient Air Temperature (AAT) sensor |
| 31 | Camshaft Position (CMP) sensor |
| 32 | Crankshaft Position (CKP) sensor |
| 33 | Brake pedal switch |
| 34 | Brake vacuum sensor |
