Component Location 4 Of 4 - Common Components
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Right Hand Drive (RHD) vehicle is shown. Left Hand Drive (LHD) vehicle is similar.

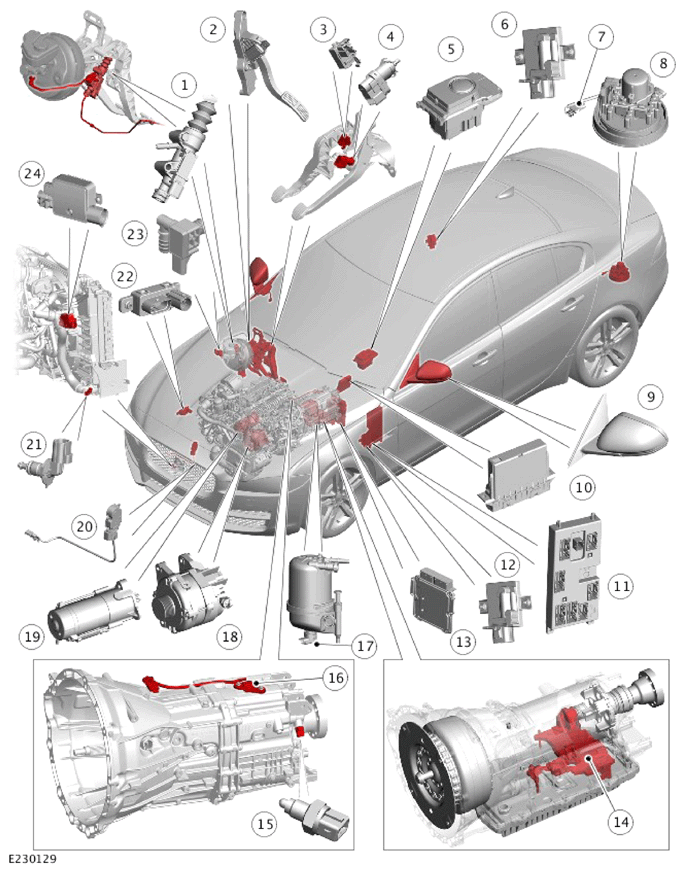

| ITEM | DESCRIPTION |
|---|---|
| 1 | Clutch pedal position sensor - Vehicles with manual transmission only |
| 2 | Accelerator Pedal Position (APP) sensor |
| 3 | Clutch Bottom of Travel (BOT) switch - Vehicles with manual transmission only |
| 4 | Brake pedal switch |
| 5 | Transmission Control Switch (TCS) - Vehicles with automatic transmission only |
| 6 | Fuel Pump Driver Module (FPDM) - Vehicles without auxiliary fuel filter assembly |
| 7 | Diesel Exhaust Fluid (DEF) heater control unit (if equipped) |
| 8 | DEF tank module (if equipped) |
| 9 | Ambient Air Temperature (AAT) sensor |
| 10 | HVAC Control Module |
| 11 | Body Control Module/Gateway Module (BCM/GWM) |
| 12 | FPDM - Vehicles with auxiliary fuel filter assembly |
| 13 | Powertrain Control Module (PCM) |
| 14 | Transmission Control Module (TCM) - Vehicles with automatic transmission only |
| 15 | Reverse switch - Vehicles with manual transmission only |
| 16 | Gear selector position sensor - Vehicles with manual transmission only |
| 17 | Water In Fuel (WIF) sensor |
| 18 | Generator |
| 19 | Starter motor |
| 20 | Active grille air shutter motor (if equipped) |
| 21 | Radiator outlet Engine Coolant Temperature (ECT) sensor |
| 22 | Glow plug control module |
| 23 | Brake vacuum sensor |
| 24 | Engine cooling fan control module |
