Component Location 1 Of 5 - INGENIUM I4 2.0L Diesel 163 PS And 180 PS - EU5 Market Vehicles Only
WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

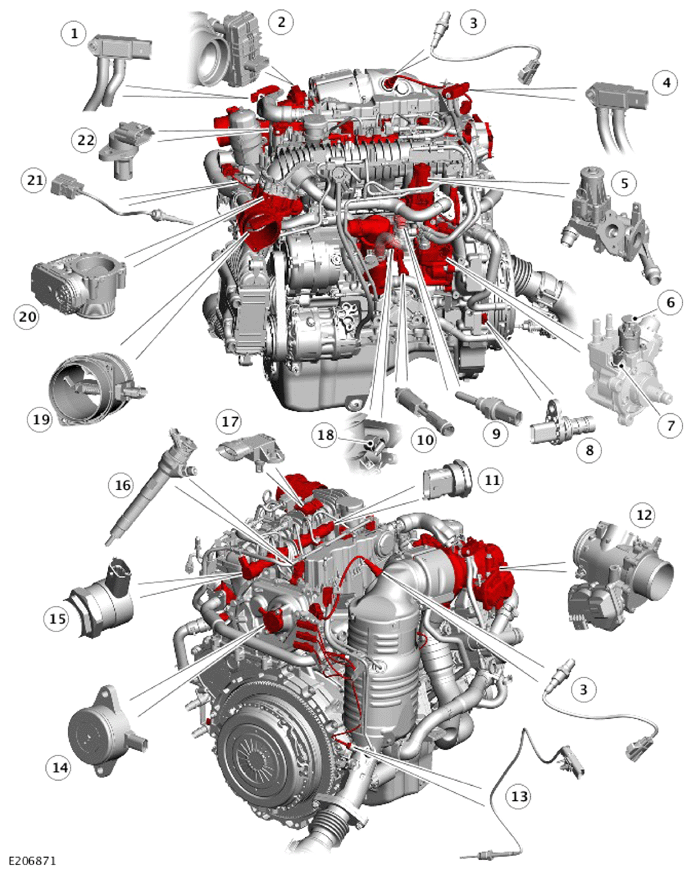

1 of 2

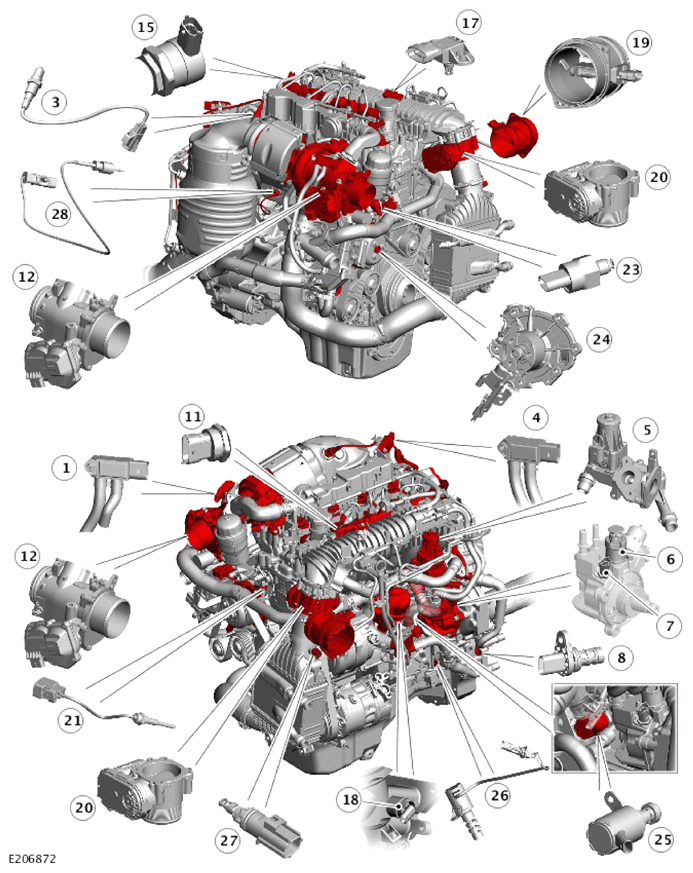

2 of 2
| ITEM | DESCRIPTION |
|---|---|
| 1 | Low Pressure (LP) Exhaust Gas Recirculation (EGR) differential pressure sensor |
| 2 | Variable Geometry Turbine (VGT) vane actuator |
| 3 | Heated Oxygen Sensor (HO2S) |
| 4 | Diesel Particulate Filter (DPF) differential pressure sensor |
| 5 | High Pressure (HP) EGR valve and motor |
| 6 | Fuel metering valve |
| 7 | Fuel temperature sensor |
| 8 | Crankshaft Position (CKP) sensor |
| 9 | Cylinder block temperature sensor |
| 10 | Block heater (if equipped) |
| 11 | Fuel Rail Pressure (FRP) sensor |
| 12 | LP EGR valve |
| 13 | Post DPF exhaust gas temperature sensor |
| 14 | Variable Camshaft Timing (VCT) actuator |
| 15 | Fuel rail Pressure Control Valve (PCV) |
| 16 | Fuel injector (quantity 4) |
| 17 | Manifold Absolute Pressure and Temperature (MAPT) sensor |
| 18 | Electric thermostat and Engine Coolant Temperature (ECT) sensor |
| 19 | Mass Air Flow and Temperature (MAFT) sensor |
| 20 | Electric throttle |
| 21 | Cylinder head temperature sensor |
| 22 | Camshaft Position (CMP) sensor |
| 23 | Oil pressure and temperature sensor |
| 24 | Variable coolant pump |
| 25 | Piston cooling oil jets solenoid |
| 26 | Oil pressure control solenoid |
| 27 | Charge air cooler temperature sensor |
| 28 | Exhaust manifold temperature sensor |
