Compressor Bypass Valve - INGENIUM I4 2.0L Diesel - High Power (G2224797): Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

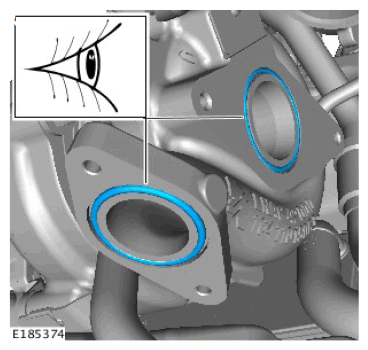

Install new turbocharger to Compressor Bypass Valve (CBV) seals.

Renew Part: Turbocharger outlet pipe seals Quantity: 2.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

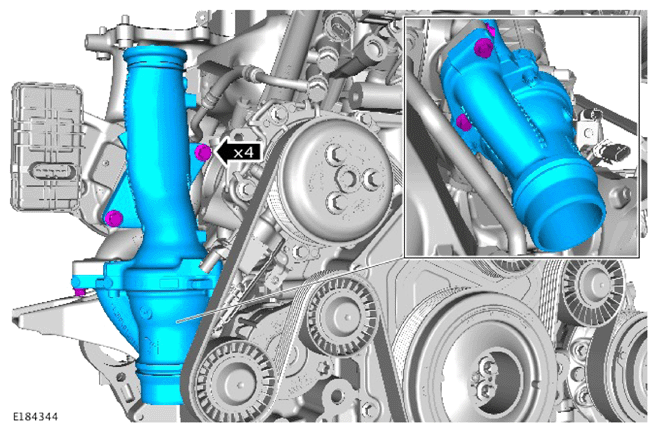

Install the CBV.

Torque : 9Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

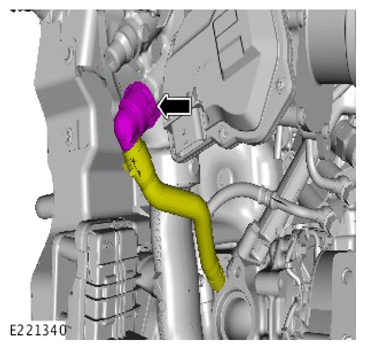

Install the turbocharger coolant hose.
Install the Low Pressure (LP) Exhaust Gas Recirculation (EGR) cooler.
Refer to: LOW PRESSURE EXHAUST GAS RECIRCULATION COOLER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

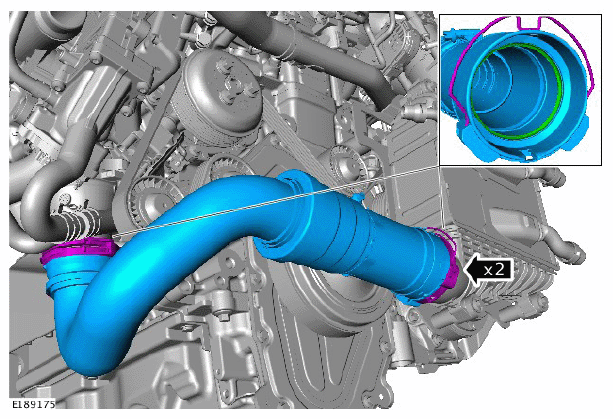

Install the charge air cooler intake pipe.
Fill the engine cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
Connect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
