Pinpoint Test B: Oil Level Check

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

B1: OIL LEVEL CHECK

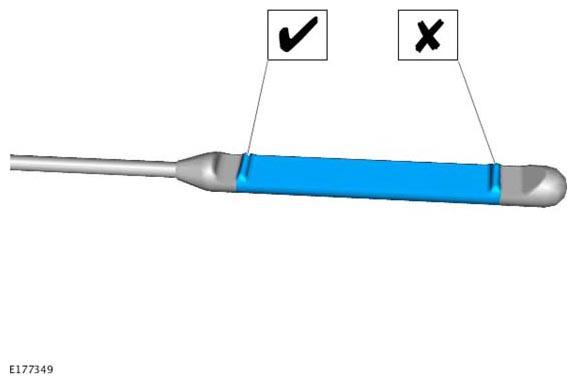

Check the engine oil level.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Is the engine oil level below minimum?

Yes

Visually inspect the engine for obvious engine leaks. If a leak is identified, rectify as required and retest.

GO to B2.

B2: OIL LEVEL CHECK
1. Check the engine oil level.
  Is the engine oil level above maximum?

  Yes

  Drain the oil and top up to the maximum position on the dipstick. GO to C1.

  No

  GO to B4.
B3: CHECK THE FUEL IN OIL LEVEL
1. Connect the JLR approved battery support unit. Jaguar Land Rover approved battery support unit
2. Connect the JLR approved diagnostic equipment to the vehicle and begin a new session. Jaguar Land Rover approved diagnostic equipment
  use DID 03E1 Is the fuel in oil level above **%?

  Yes

  Complete a oil and filter change and reset the fuel in oil level and retest. Refer to: ENGINE OIL VACUUM DRAINING AND FILLING

  No

  GO to B4.
B4: OIL LEVEL CHECK
1. Check the engine oil level.
  Is the engine oil level between the minimum and maximum marks on the dipstick?

  Yes

  GO to PINPOINT TEST C .

  No

  GO to B1.
