Right Engine Mount - INGENIUM I4 2.0L Diesel - Mid, Low Power (G1914829): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

Some variation in the illustrations may occur, but the essential information is always correct.
Some components shown removed for clarity.
Removal steps in this procedure may contain installation details.
This procedure contains steps that are model and model year specific. These are detailed in the applicable steps.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the engine undershield.
Refer to: ENGINE UNDERSHIELD
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the vacuum pipe and reposition away from the engine mount assembly.
Remove the charge air cooler intake pipe.
Refer to: CHARGE AIR COOLER INTAKE PIPE - INGENIUM I4 2.0L DIESEL - MID, LOW POWER
CAUTION: Use a suitable 100mm X 100mm block of wood to support the engine.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using a suitable hydraulic jack support the engine as highlighted in the illustration.

General Equipment: Hydraulic floor jacks (2 tonnes minimum capacity)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
1. Remove the engine mount nut.
2. Release the ground cable and reposition away from the engine mount.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 engine mount retaining bolts.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the upper engine mount bracket bolt.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the 3 remaining engine mount bracket bolts and remove the engine mount bracket.
NOTE: Note the fitted position of the component prior to removal.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the engine mount from the vehicle.
NOTE:
1. This step is only required if a new engine mount is to be installed.
2. This step only applies to X761 vehicles manufactured up to 09/2020.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

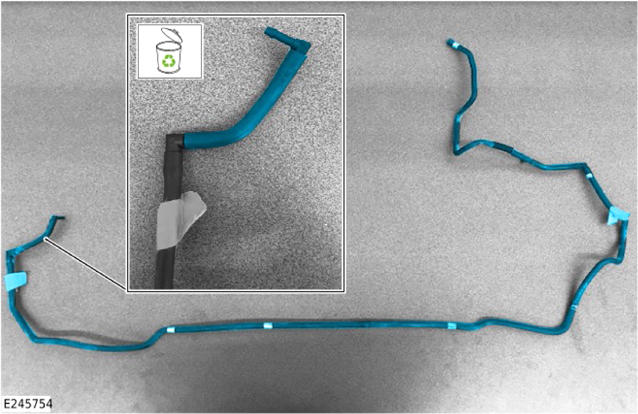

Remove and discard the section of active engine mount vacuum hose.
NOTE:
1. This step is only required if a new engine mount is to be installed.
2. This step only applies to X761 vehicles manufactured up to 09/2020.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

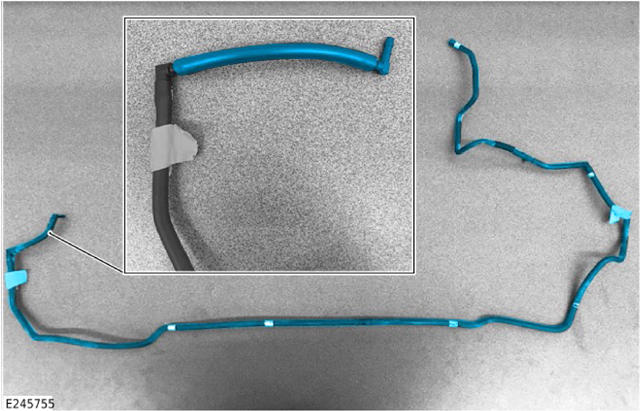

Install the section of active engine mount vacuum hose, as shown in the illustration.

Renew Part: Vacuum pipe attachment - right side Quantity: 1 .
