Right Engine Mount - INGENIUM I4 2.0L Diesel - High Power (G2259070): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.
This procedure contains steps that are model and model year specific. These are detailed in the applicable steps.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the high pressure turbocharger.
Refer to: HIGH PRESSURE TURBOCHARGER - INGENIUM I4 2.0L DIESEL - HIGH POWER
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Release the engine mount vacuum pipe.

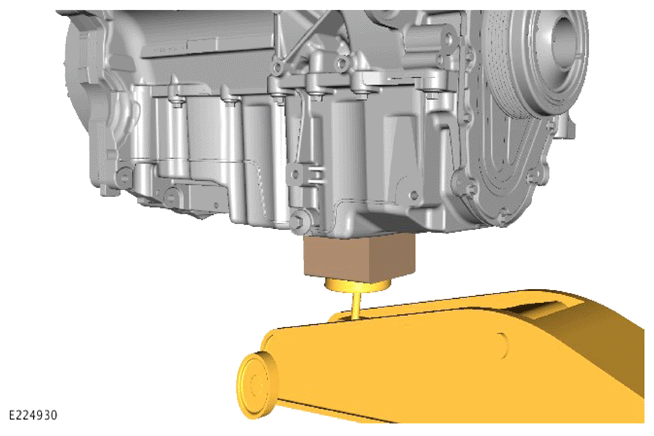

CAUTION: Use a suitable 100mm X 100mm block of wood to support the engine.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Using a suitable hydraulic jack support the engine as highlighted in the illustration.

General Equipment: Hydraulic floor jacks (2 tonnes minimum capacity)
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
1. Remove the engine mount retaining nut.
2. Remove the 4 engine mount bracket bolts.
3. Remove the engine mount bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the 2 engine mount retaining bolts.
NOTE: Note the installed position.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the right engine mount.
NOTE:
1. This step is only required if a new engine mount is to be installed.
2. This step only applies to X761 vehicles manufactured up to 09/2020.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove and discard the section of active engine mount vacuum hose.
