Cylinder Head Gasket (G1867838): Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Check cylinder head face for distortion, across the center and from corner to corner.

Refer to: CYLINDER HEAD DISTORTION
Refer to: CYLINDER HEAD GASKET SELECTION - INGENIUM I4 2.0L DIESEL
CAUTION: Make sure that the dowels and dowel holes are clean and free from debris and foreign material.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
NOTE: The cylinder head gasket must be installed over the cylinder head to cylinder block dowels.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Cylinder head gasket Quantity: 1 .

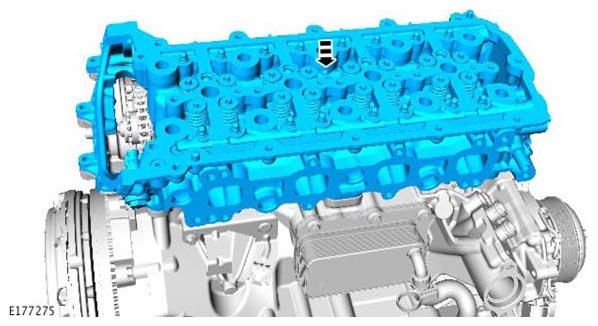

CAUTION: Make sure that the component is correctly located on the locating dowels.

NOTE: With assistance, install the component.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Use the special tool to install the cylinder head bolts.

Install the Special Tool(s): JLR-303-1653
CAUTION:
1. Make sure that new cylinder head bolts are installed.
2. Tighten the bolts in the indicated sequence.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Cylinder head bolts Quantity: 1 .

Torque

Stage 1: 10Nm

Stage 2: 20Nm

Stage 3: 53Nm
CAUTION: Carry out the following procedure in the indicated sequence.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque

Stage 1:

Loosen the bolt: 180°

: 180°

Stage 2:

Tighten the bolt: 53Nm

: 53Nm
CAUTION: Tighten the bolts in the indicated sequence.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
1. Torque
  Stage 1: 90°

  Stage 2: 120°
2. Remove the special tool.
  Remove the Special Tool(s): JLR-303-1653
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 13Nm
NOTE: Install the camshaft followers in the sequence mark in the removal step.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Make sure that a new component is installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Cylinder head temperature sensor Quantity: 1 .

Torque : 11Nm

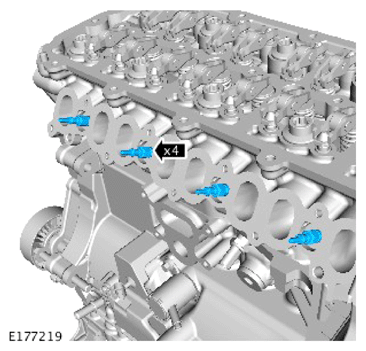

CAUTION: If accidentally dropped or knocked install a new glow plug.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 13Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 25Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Install new o-ring seals

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Renew Part: Oil filter housing inlet/outlet O-ring seals Quantity: 1 .
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 12Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 12Nm
Install the valve cover.
Refer to: CAMSHAFT CARRIER
Install the exhaust manifold.
Refer to: EXHAUST MANIFOLD - INGENIUM I4 2.0L DIESEL - MID, LOW POWER

Refer to: EXHAUST MANIFOLD - INGENIUM I4 2.0L DIESEL - HIGH POWER
Install the intake manifold.
Refer to: INTAKE MANIFOLD
Install the oil filter element.
Refer to: OIL FILTER ELEMENT
Lower the vehicle.
