Crankshaft Rear Seal (G1817146): Installation

The following step(s) applies to:

All vehicles

1. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   CAUTION: Make sure that the area around the component is clean and free of foreign material.

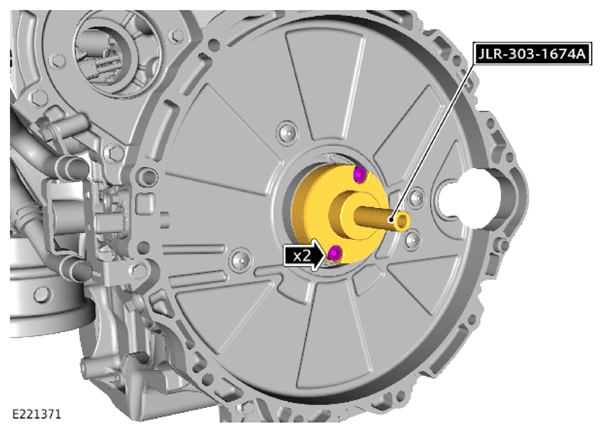

   1. Install the special tool (JLR-303-1674) to the rear of the crankshaft.

      Special Tool(s): JLR-303-1674A

2. CAUTION:

   1. Make sure a new seal is installed.
   2. If the seal is removed from the spacer provided, a new seal must be installed.
   3. Make sure that the area around the component is clean and free of foreign material.
   NOTE: The component labeled (2) in the illustration is a alignment spacer provided with a new seal.

   Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   Position the new crankshaft oil seal (1) and spacer (2) over special tool JLR-303-1674A. Carefully slide the crankshaft oil seal (1) over the end of the crankshaft and discard the spacer (2).

   Special Tool(s): JLR-303-1674A

   Renew Part: Crankshaft rear seal  Quantity: 1  .

3. Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

   CAUTION: Make sure the seal is installed correctly.
   1. Install the second part of special tool JLR-303-1674A to position the crankshaft oil seal correctly.

      Special Tool(s): JLR-303-1674A

   2. Tighten the bolt until the seal is fully installed and the bolt stops turning.

   The following step(s) applies to:

   Vehicles with automatic transmission

4. Install the drive plate.

   Refer to: FLEXPLATE

   The following step(s) applies to:

   Vehicles with manual transmission

5. Install the flywheel.

   Refer to: FLYWHEEL

   The following step(s) applies to:

   All vehicles

6. Connect the startup battery ground cable.

   Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
