Camshafts (G1817149): Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Make sure that these components are installed to the noted removal position.

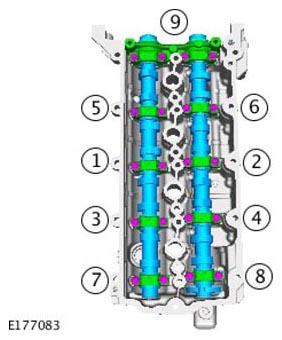

Fig 1: Camshaft Bearing Caps Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
1. Install the camshafts.
2. Install the camshaft bearing caps. Tighten the bolts finger tight before final tightening in sequence illustrated.
  Torque : 11Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

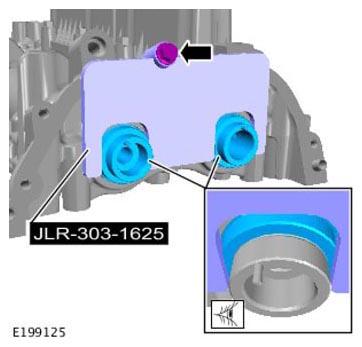

Using the special tool align the camshafts.

Special Tool(s): JLR-303-1625
CAUTION: Install and finger tighten bolts before final tightening in sequence illustrated.

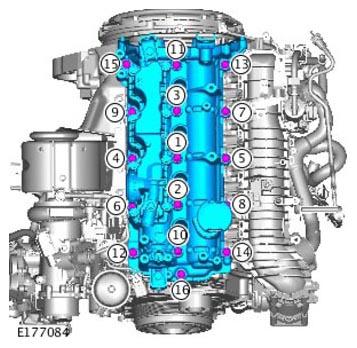

Fig 2: Camshaft Cover Gasket Bolts Tightening Sequence
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the valve cover. Make sure a new gasket is installed.

Renew Part: Camshaft cover gasket Quantity: 1 .

Torque

M8 x 80

Stage 1: 15Nm

Stage 2: 45°

M8 x 40: 25Nm
Install the crankcase breather.
Install the cylinder head temperature sensor electrical connector bracket.
Torque : 12Nm
Install the wiring harness and connect the 2 electrical connectors.
Install the Noise, Vibration and Harshness (NVH) material.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

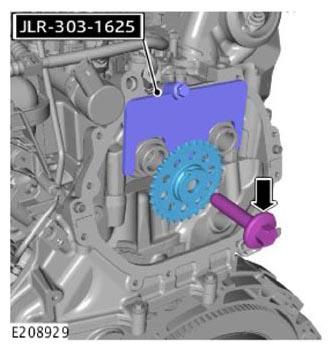

Install the camshaft gear and bolt finger tight.

Renew Part: Variable camshaft timing actuator bolts Quantity: 1 .

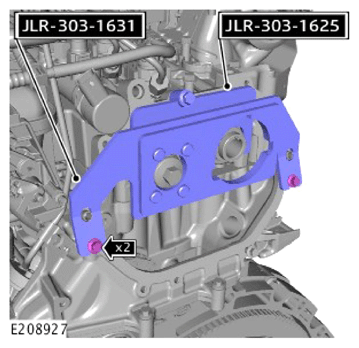

CAUTION: Use 2 suitable M6 X 20 bolts to install the special tool to the cylinder head.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the special tool.

Special Tool(s): JLR-303-1631
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

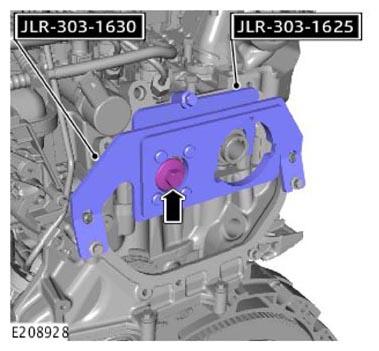

Fully tighten the camshaft gear bolt and remove the special tool.

Special Tool(s): JLR-303-1631

Torque

Stage 1: 80Nm

Stage 2: 90°
Install the upper timing chain.
Refer to: UPPER TIMING CHAIN - REMOVE FOR ACCESS
Install the fuel injectors.
Refer to: FUEL INJECTORS
Install the fuel rail.
Refer to: FUEL RAIL
