Front Disc Brake (G2263277)
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Numbers with a green background are a single use component *

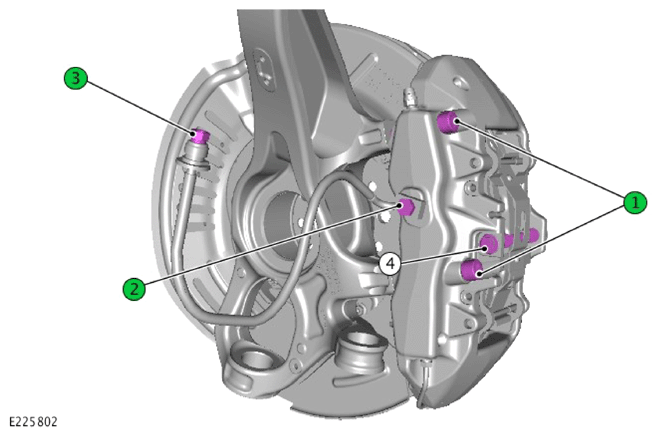

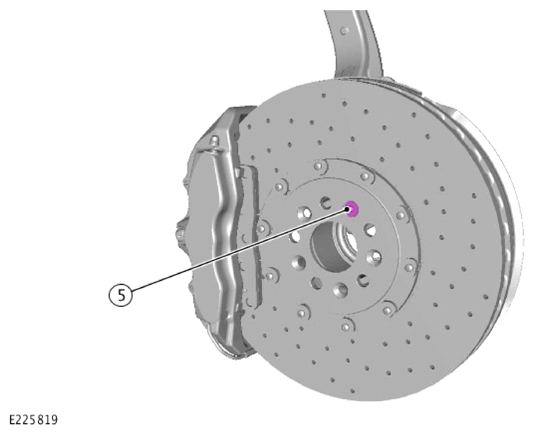

COMPONENT TORQUE LOCATION
TORQUE SPECIFICATION
| DESCRIPTION | NM | LB-FT | ||
|---|---|---|---|---|
| 1 | Brake caliper carrier bolts. | - | - | - |
| Stage 1 | 80 | 59 | - | |
| Stage 2 | 60° | - | ||
| 2 | Brake hose to brake caliper banjo bolt. | 38 | 28 | - |
| 3 | Brake pipe union. | 15 | 11 | - |
| 4 | Brake pad retaining bolt. | 35 | 25.8 | - |
| 5 | Brake disc retaining bolt. | 35 | 25.8 | - |
