Brake Pads - Project 8 (G2248941): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
Brake pads must be renewed in axle sets only. Failure to follow this instruction may result in braking efficiency being impaired.
CAUTION:
- Take care not to contaminate the brake pad friction materials or the brake discs.
- Do not use compressed air to clean brake components. Dust from friction materials can be harmful if inhaled.
- Carbon ceramic brake discs can easily be damaged. Do not strike or lever on the component.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
- Remove the wheel and tire assembly.
Refer to: WHEEL AND TIRE - PROJECT 8 .
- Remove the 5 screws.
- Remove the brake cooling air duct.
- Release the brake pad wear sensor.
- Release the clip.
- Release the grommet.
-
CAUTION: Make sure that no excessive force is used. Failure to follow this instruction may result in damage to the component.NOTE: Note the installed position of the components prior to removal.
- Remove the 2 retaining pins.
- Remove the anti-rattle spring.
- Remove the middle retaining pin bolt.
- Remove the middle retaining pin.
-
NOTE: Note the installed position of the components prior to removal.
Remove the brake pads.
-
NOTE: Only do the following step(s) if a new component is to be installed.
Remove the front wheel arch liner.
Refer to: FRONT WHEEL ARCH LINER - PROJECT 8
-

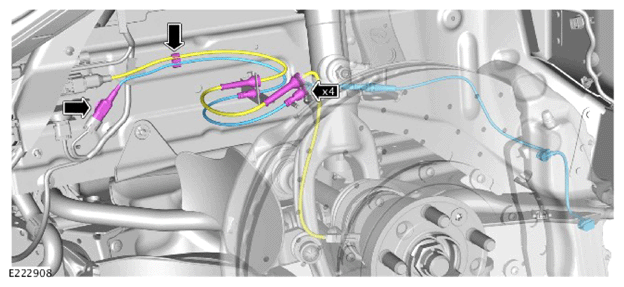

NOTE: If new brake pads are installed, the brake pad wear sensor must be replaced.
- Release the 4 grommets.
- Release from the clip.
- Disconnect the electrical connector.
- Remove the brake pad wear sensor.
