Brake Pads - INGENIUM I4 2.0L Petrol/V6 S/C 3.0L Petrol (G1822045): Removal
WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING:
- Brake pads must be renewed in axle sets only. Failure to follow this instruction may result in braking efficiency being impaired.
- If the brake pad wear warning light has been activated, a new brake pad wear sensor must be installed.
NOTE:
- This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
- This procedure contains illustrations showing certain components removed to provide extra clarity.
- If this component is being renewed because of a customer complaint, make sure to follow the brake system Diagnosis and Testing procedure.
Refer to: BRAKE SYSTEM
- Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING .
- Remove the front wheel and tire.
Refer to: WHEEL AND TIRE
-
NOTE: If equipped.
- Remove the 2 bolts.
- Remove the access cover.
Remove the anti-rattle spring.
-
CAUTION: The brake pad wear indicator sensor is easily damaged. Do not use a lever to remove the sensor. Use fingers only.NOTE: Inspect the brake pad wear sensor for signs of wear or damage. Install a new sensor if necessary.
Disconnect and release the brake pad wear sensor.
-
CAUTION: Do not allow the brake caliper to hang on the brake hose.

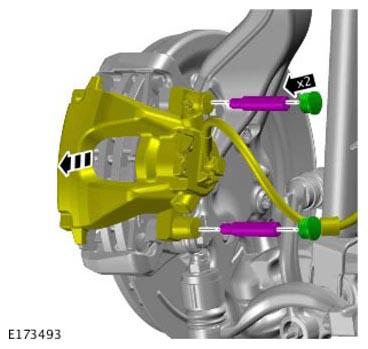

- Remove the 2 dust caps.
- Remove the brake caliper 2 slide pins.
- Use a suitable cable tie to support the brake caliper.

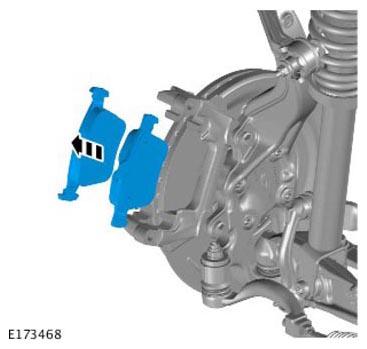

Remove the brake pads.
