Brake Pads - INGENIUM I4 2.0L Petrol/V6 S/C 3.0L Petrol (G1822045): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Do not use compressed air to clean brake components. Dust from friction materials can be harmful if inhaled.

CAUTION: Make sure that the mating faces are clean and free of foreign material and that no grease is applied to the brake pad guides.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Use the brake cleaning fluid to clean the brake caliper carrier.
WARNING: If the brake caliper piston seal is damaged a new brake caliper must be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Inspect the brake caliper piston and slide pin seals for damage.
NOTE: Only do this step if new brake pads are to be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Use a piston retraction tool, fully retract the brake caliper piston.

Special Tool(s): 206-080
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

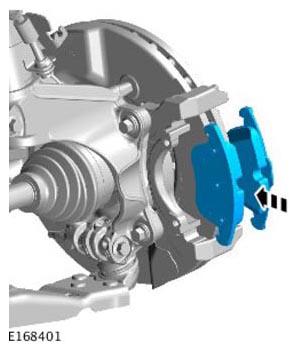

Install the brake pads.
CAUTION: Make sure that the brake hose is not twisted and is correctly located.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

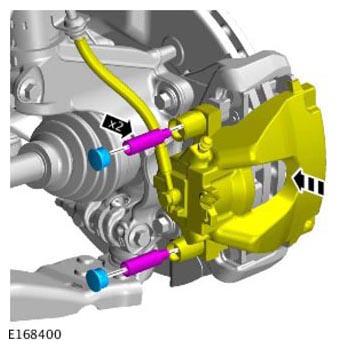

- Install the brake caliper.
- Install and tighten the brake caliper 2 slide pins.
  Torque : 58Nm
- Install the 2 dust caps.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

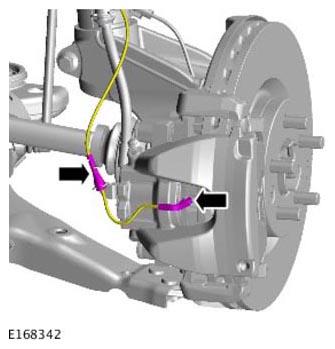

Connect the brake pad wear sensor to the brake pad.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Install the anti-rattle spring.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Install the access cover.
- Install and tighten 2 bolts.
Torque : 6Nm
Install the front wheel and tire.
Refer to: WHEEL AND TIRE
Depress the brake pedal several times, check the fluid level in the brake fluid reservoir and top-up with brake fluid if necessary.
