Brake Pads - INGENIUM I4 2.0L Diesel (G1822046): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Do not use compressed air to clean brake components. Dust from friction materials can be harmful if inhaled.

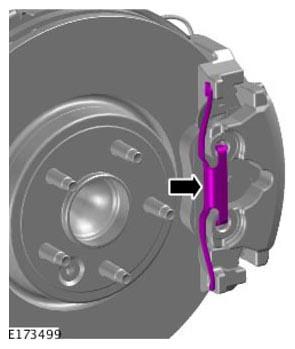

CAUTION: Make sure that the mating faces are clean and free of foreign material and that no grease is applied to the brake pad guides.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

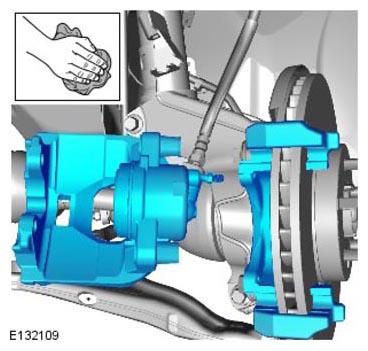

Clean the brake caliper housing and anchor plate using brake cleaning fluid.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

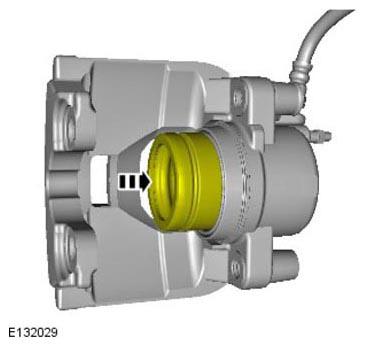

Inspect the caliper piston and slide pin seals for damage.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
CAUTION: Make sure that the brake hose is not twisted and is correctly located.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Torque : 33Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
Repeat the above procedure for the other side.
Install the wheels and tires.
Refer to: WHEEL AND TIRE
Depress the brake pedal several times, check the fluid level in the brake fluid reservoir and top-up with brake fluid if necessary.
