Brake Disc - Project 8 (G2248940): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: If installing a new brake disc, install new brake pads.

CAUTION:

Brake discs must be renewed in pairs.
Carbon ceramic brake discs can easily be damaged. Do not strike or lever on the component.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the wheel and tire assembly.
Refer to: WHEEL AND TIRE - PROJECT 8
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 5 screws.
- Remove the brake cooling air duct.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Release the brake pad wear sensor.
- Release the clip.
- Release the grommet.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
- Remove the 2 retaining pins.
- Remove the anti-rattle spring.
- Remove the bolt.
- Remove the retaining pin.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Remove the brake pads.
CAUTION: Do not allow the brake caliper to hang on the brake hose.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

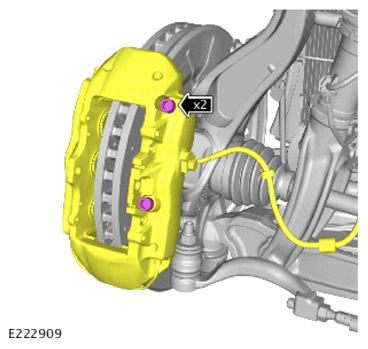

- Remove and discard the 2 bolts.
- Using a suitable tie strap, tie the caliper aside.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

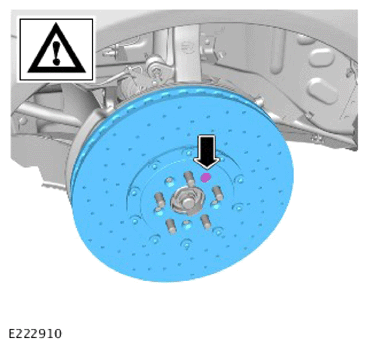

- Remove the retaining screw.
- Remove the brake disc.
CAUTION: Inspect the component, replace if damaged.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

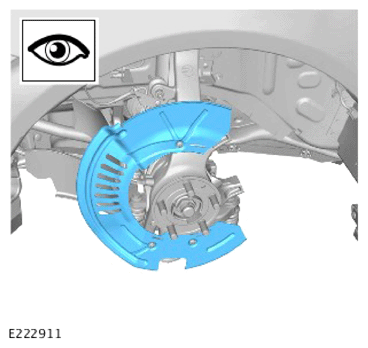

Clean and inspect the brake disc shield.
