Brake Disc - Project 8 (G2248940): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION: Take extra care when handling the component.

Install the brake disc and tighten the screw.

Torque : 35Nm
WARNING: If the brake caliper piston seal is damaged a new brake caliper must be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

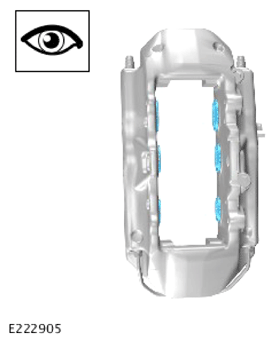

Inspect the caliper piston seals for damage.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

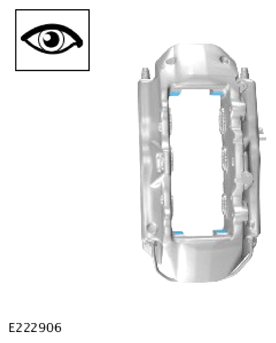

Clean and inspect the brake caliper at the brake pad contact points.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

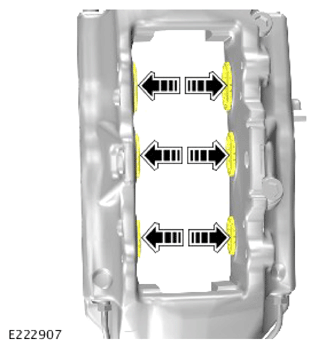

With a suitable piston retraction tool, push the pistons slightly back into the brake caliper housing to aid the installation of the brake pads.
CAUTION: Make sure that new bolts are installed.
- Install the brake caliper.
- Install and tighten the 2 new bolts.
Renew Part: Brake caliper carrier bolt(s) Quantity: 2.

Torque

Stage 1: 80Nm

Stage 2: 60°
NOTE: Make sure that the components are installed in correct orientation.
- Install the brake pads.
- Install the middle brake pad retaining pin.
- Install and tighten the bolt.
  Torque : 35Nm
- Install the anti-rattle spring.
- Install the 2 retaining pins.
- Position and secure the grommet.
- Install the brake pad wear sensor.
- Carefully secure the clip.
- Install the brake cooling air duct.
- Install and tighten the 5 screws.
Torque : 10Nm
Install the wheel and tire assembly.
Refer to: WHEEL AND TIRE - PROJECT 8
