Brake Disc (G1822043): Removal

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: Brake discs must be renewed in axle sets.
NOTE:
  • Some components shown removed for clarity.
  • Removal steps in this procedure may contain installation details.
  1. If this component is being renewed because of a customer complaint, make sure to follow the brake system Diagnosis and Testing procedure.

    Refer to: BRAKE SYSTEM

  2. WARNING: Make sure to support the vehicle with axle stands.

    Raise and support the vehicle.

  3. Refer to: WHEEL AND TIRE

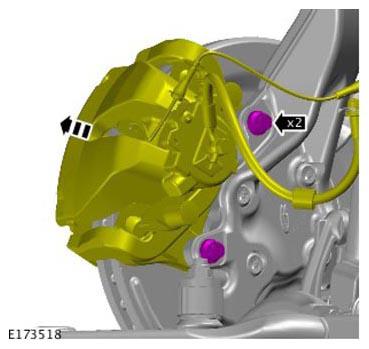

  4. CAUTION:
    • Do not allow the brake caliper to hang on the brake hose.
    • Discard the bolts.
    G11308627Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Tie aside.

    Renew Part: Brake caliper carrier bolt(s)  Quantity: 2.

    Torque

    Stage 1: 70Nm

    Stage 2: 120°

  5. G11308628Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
