Brake Disc (G1822043): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. G11297178Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Clean the brake disc using brake cleaning fluid.

  2. G11308628Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Torque  : 35Nm

  3. WARNING: Do not use compressed air to clean brake components. Dust from friction materials can be harmful if inhaled.

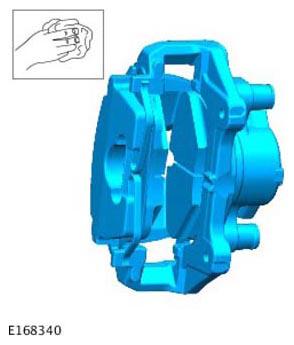

    G11308631Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Clean the brake caliper housing and anchor plate using brake cleaning fluid.

  4. CAUTION: Make sure that the brake hose is not twisted and is correctly located.
    NOTE: Install new brake caliper anchor plate retaining bolts.

    To install, reverse the removal procedure.

  5. Depress the brake pedal several times, check the fluid level in the brake fluid reservoir and top-up with brake fluid if necessary.
