Brake Caliper - INGENIUM I4 2.0L Petrol/V6 S/C 3.0L Petrol (G1822041): Installation

WARNING: This page is about a different car, the 2020 Jaguar XE and 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: If the brake caliper piston seal is damaged a new brake caliper must be installed.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

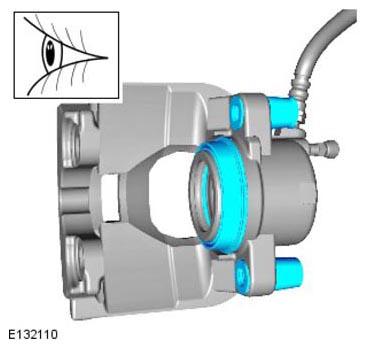

Inspect the brake caliper piston and slide pin seals for damage.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

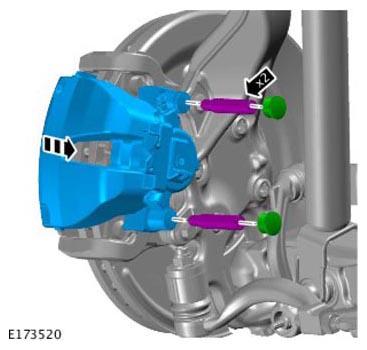

- Install the brake caliper.
- Install and tighten the brake caliper 2 slide pins.
  Torque : 58Nm
- Install the 2 dust caps.
CAUTION:
- Inspect the brake hose sealing washers for signs of damage, if damage is present install new sealing washers.
- Make sure that the brake hose is not twisted and is correctly located.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

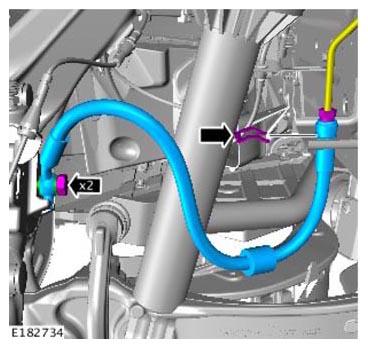

- Install the new brake caliper hose.
  Renew Part: Brake caliper hose Quantity: 1.
- Connect and tighten the brake pipe union.
  Torque : 15Nm
- Install the clip.
- Connect the brake caliper hose to the brake caliper.
- Tighten the Banjo bolt.
Torque : 32Nm
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

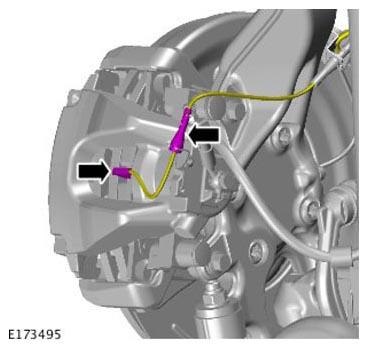

Connect the brake pad wear sensor to the brake pad.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

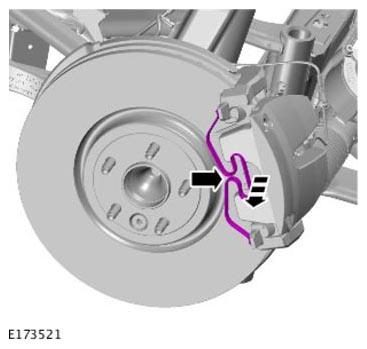

Install the anti-rattle spring.
NOTE: If equipped.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

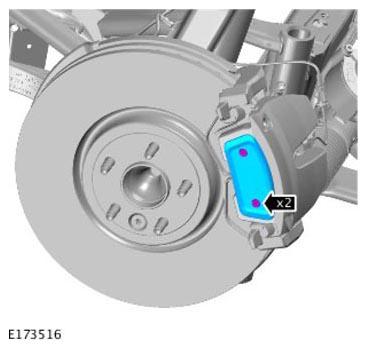

- Install the access cover.
- Install and tighten 2 bolts.
Torque : 6Nm
Bleed the brake system.
Refer to: BRAKE SYSTEM BLEEDING
Install the wheel and tire.
Refer to: WHEEL AND TIRE
