Electronic Engine Controls - V8 S/C 5.0L Petrol, Project 8 (G2261903): Specifications

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

COMPONENT TORQUE LOCATION

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

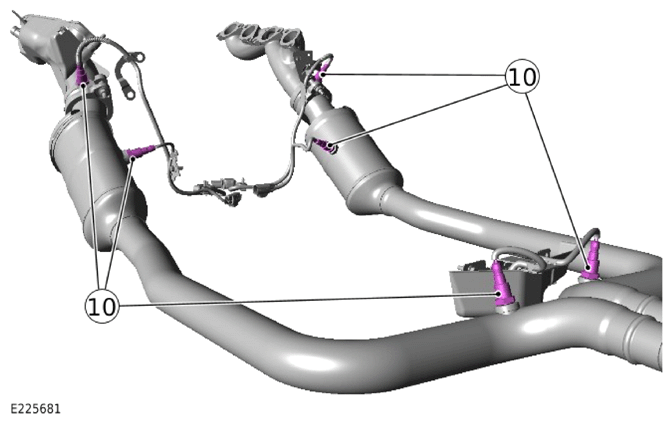

COMPONENT TORQUE LOCATION

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

COMPONENT TORQUE LOCATION

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

COMPONENT TORQUE LOCATION

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

COMPONENT TORQUE LOCATION

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

TORQUE SPECIFICATION

	DESCRIPTION	NM	LB-FT	LB-IN

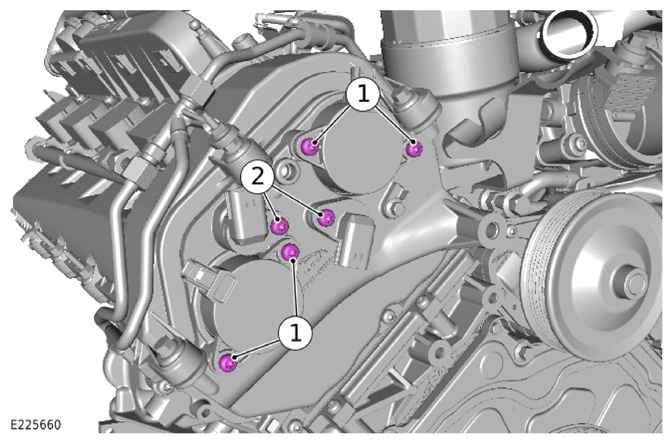

1	Variable valve timing (VVT) oil control solenoid(s) retaining bolts	10	7.3	-
2	Camshaft position sensor retaining bolts	10	7.3	-

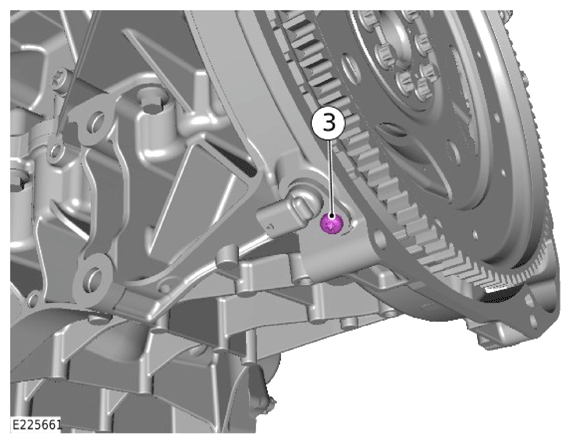

3	Crankshaft position sensor (CKP)retaining bolt	10	7.3	-

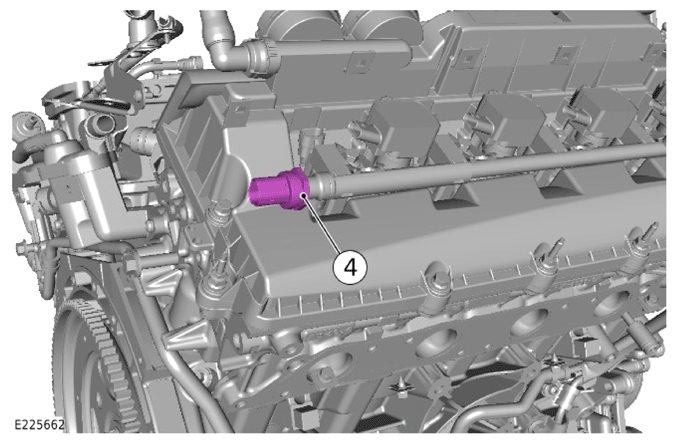

4	Fuel rail pressure (FRP) sensor	38	28.0	-

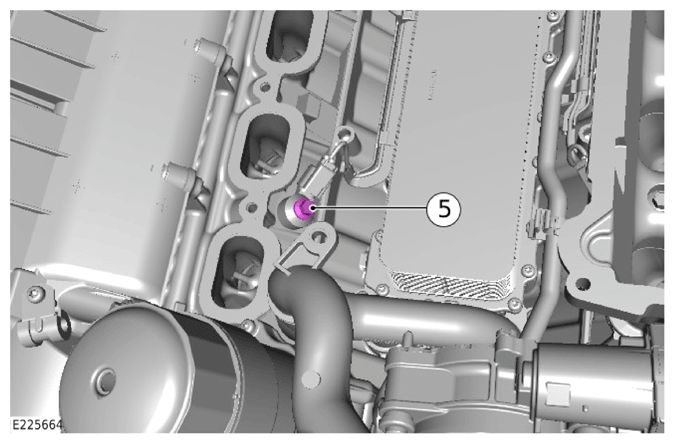

5	Knock sensor retaining bolt	20	14.7	-

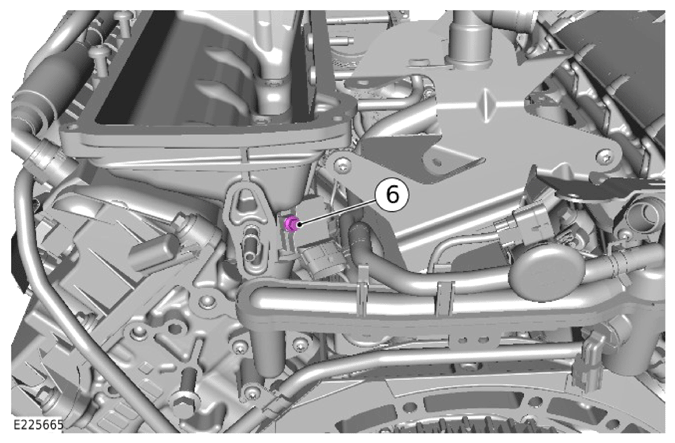

6	Manifold absolute pressure and temperature sensor (MAP)	5	3.6	-

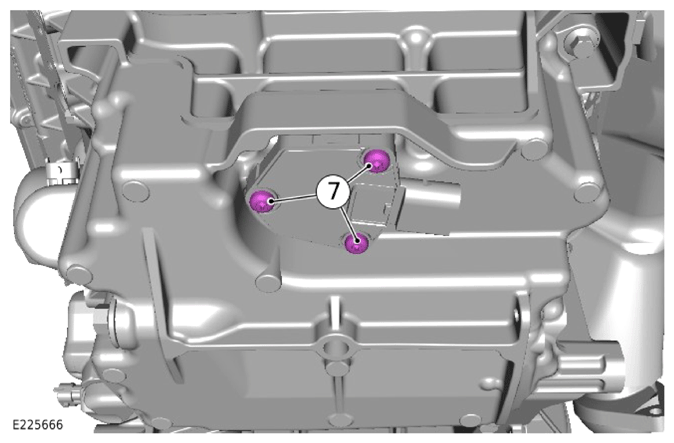

7	Engine oil level sensor retaining bolts	12	8.8	-

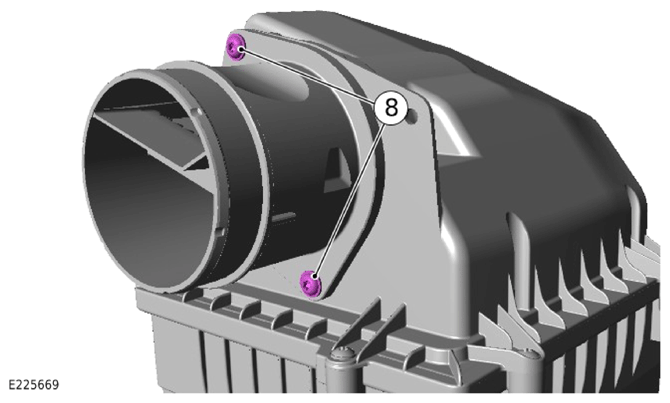

8	Mass air flow (MAF) sensor	7	5.1	-

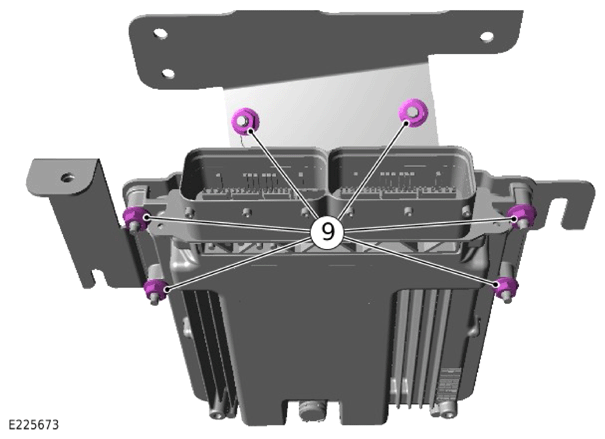

9	Engine control module (ECM) retaining nut	7	5.1	-
10	Heated oxygen sensors (HO2S)	48	35.4	-
