Right Variable Valve Timing Oil Control Solenoid (G2244165): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Be prepared to collect escaping coolant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the hood.
Refer to: HOOD - REMOVE FOR ACCESS AND INSTALL - PROJECT 8
Partially drain the cooling system.
Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING
Remove the right air cleaner outlet intermediate pipe.
Refer to: AIR FILTER OUTLET PIPE T-CONNECTOR
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

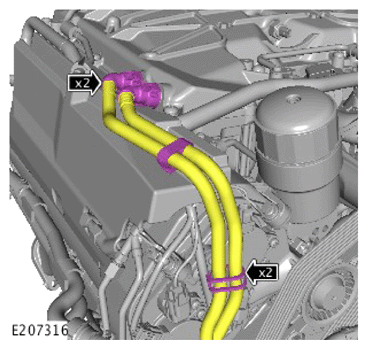

- Disconnect the 2 right supercharger coolant hose retaining clips.
- Release the 2 retaining clips.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

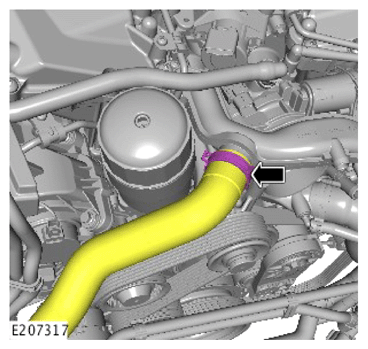

Release the coolant hose.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

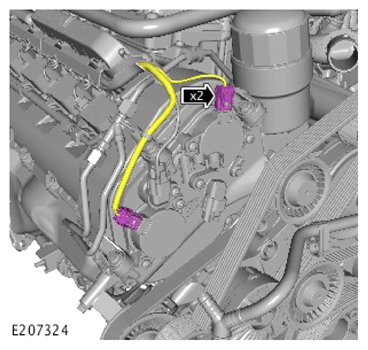

Disconnect the 2 variable valve timing solenoid electrical connectors.
CAUTION: Evenly and progressively, remove the variable valve timing solenoids.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

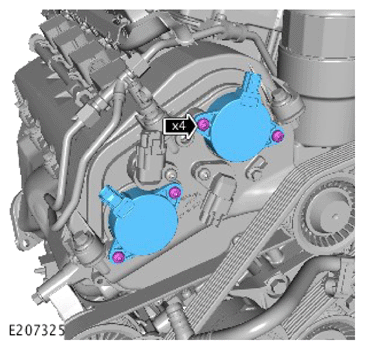

Remove the 4 variable valve timing solenoid retaining bolts.
Remove the 2 variable valve timing solenoids.
