Right Camshaft Position Sensor (G2244146): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Be prepared to collect escaping coolant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  2. Partially drain the cooling system.

    Refer to: COOLING SYSTEM PARTIAL DRAINING AND VACUUM FILLING

  3. Remove the right air cleaner outlet intermediate pipe.

    Refer to: AIR FILTER OUTLET PIPE T-CONNECTOR

  4. G13889145Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the 2 right supercharger coolant hoses.
    • Release the 2 retaining clips.
  5. G13889146Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Release the coolant hose.

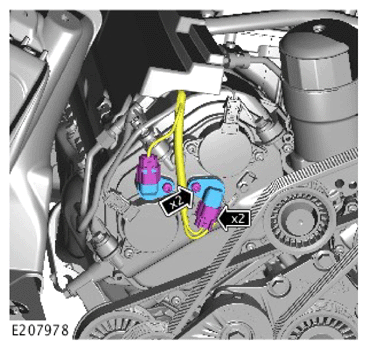

  6. G13889147Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
