Powertrain Control Module (G2244159): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustrations showing certain components removed to provide extra clarity.

Disconnect the startup battery ground cable.
Refer to: STARTUP BATTERY DISCONNECT AND CONNECT
Remove the cowl panel.
Refer to: COWL PANEL
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

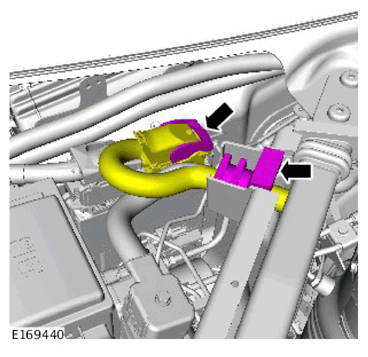

- Disconnect the Powertrain Control Module (PCM) electrical connector.
- Release the wiring harness mounting rubber.
- Reposition the wiring harness away from the PCM.
NOTE: Right hand drive vehicles only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

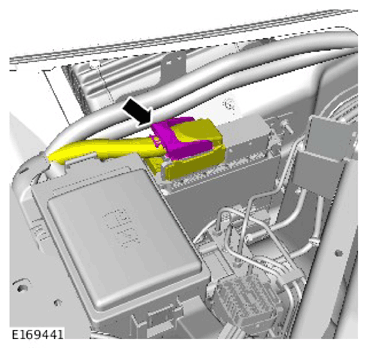

- Release the clip.
- Reposition the electrical connector away from the PCM bracket.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

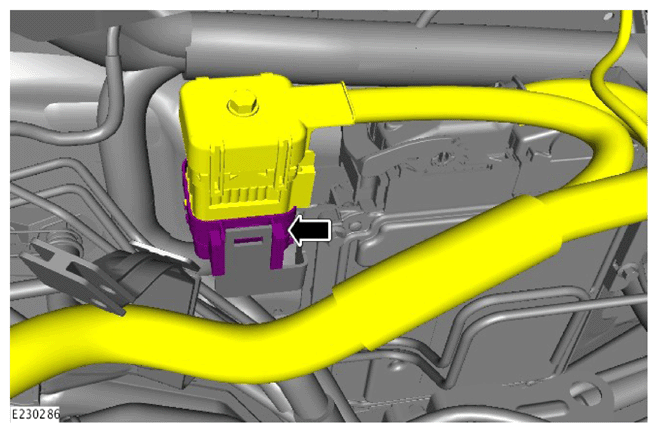

Disconnect the PCM electrical connector.
Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

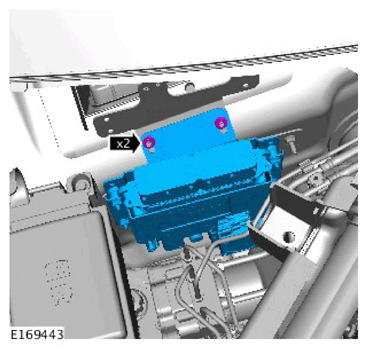

- Remove the 2 nuts.
- Remove the PCM.
NOTE: Do not disassemble further if the component is removed for access only.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

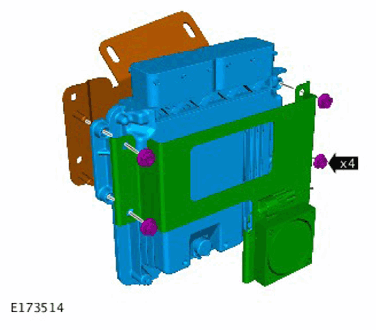

Remove the 4 nuts.
Remove the PCM bracket.
