Powertrain Control Module (G2244159): Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. NOTE: This step is only required if previously removed.
    G11308433Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the Powertrain Control Module (PCM) bracket.
    • Install and tighten the 4 nuts.

    Torque  : 7Nm

  2. G11308432Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Install the PCM.
    • Install and tighten the 2 nuts.

    Torque  : 7Nm

  3. G11308430Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Connect the PCM electrical connector.

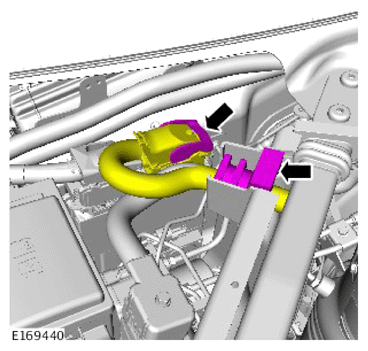

  4. G14005757Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Connect the PCM electrical connector.
    • Install and secure the wiring harness in the correct position.
  5. Install the cowl panel.

    Refer to: COWL PANEL

  6. Connect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

  7. NOTE:
    • This step is only required if a new component is installed.
    • SRO to be claimed separately.
