Post Catalyst Heated Oxygen Sensor (G2244160): Installation

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
  1. CAUTION:
    • Make sure that the mating faces are clean and free of corrosion and foreign material.
    • Make sure the anti-seize compound does not contact the HO2S tip.
    • If accidentally dropped or knocked install a new sensor.
    NOTE: If the original sensor is to be installed, apply lubricant meeting specification ESE-M12A4-A to the thread of the sensor.

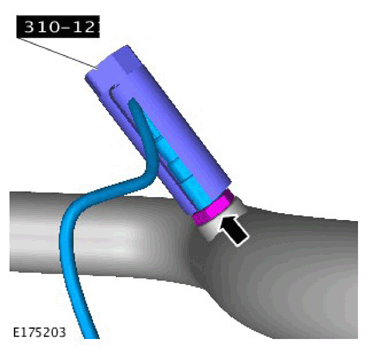

    G11298094Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    To install, reverse the removal procedure.

    Special Tool(s): 310-121

    Torque  : 48Nm
