Mass Air Flow Sensor (G2244158): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION: The ignition must be set to the OFF position before completing the following procedure.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  • This procedure contains illustrations for left side components, right side components are similar.

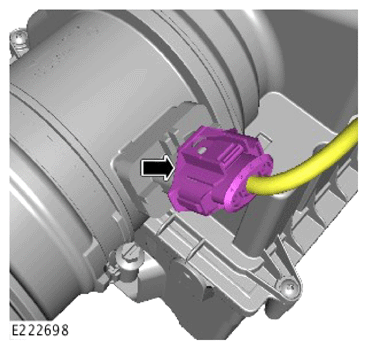

  1. G14005744Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the electrical connector from the Mass Air Flow (MAF) sensor.

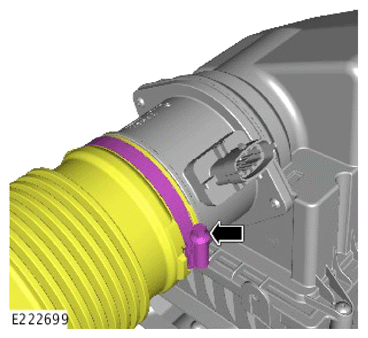

  2. G14005745Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Release the clamp.
    • Release the clean air duct from the MAF sensor.

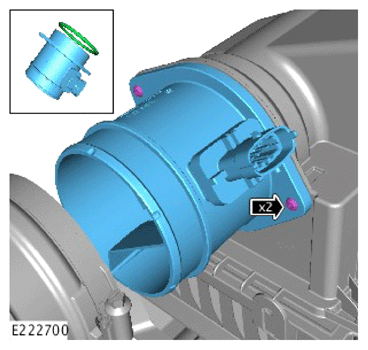

  3. G14005746Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
