Manifold Absolute Pressure Sensor (G2271922): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  2. Remove the secondary bulkhead left outer panel.

    Refer to: SECONDARY BULKHEAD LEFT OUTER PANEL - PROJECT 8

  3. Remove the secondary bulkhead left inner panel.

    Refer to: SECONDARY BULKHEAD LEFT INNER PANEL - PROJECT 8

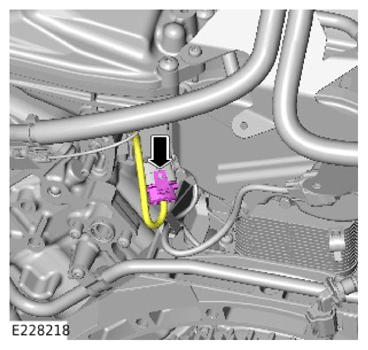

  4. G14005734Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the Manifold Absolute Pressure (MAP) sensor electrical connector.

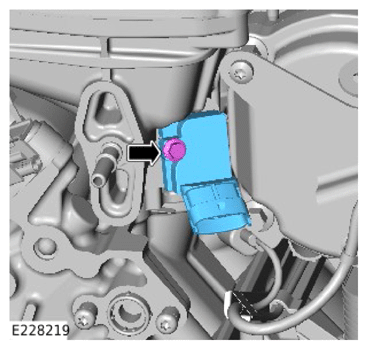

  5. G14005735Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
