Left Mid Catalyst Heated Oxygen Sensor (G2244156): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.

WARNING: Observe due care when working near a hot exhaust system.

NOTE:

This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
This procedure contains illustration showing certain components removed to provide extra clarity.

Raise and support the vehicle on a suitable 2 post lift.
Refer to: LIFTING
Remove the engine undershield.
Refer to: TRANSMISSION UNDERSHIELD - PROJECT 8
CAUTION: Make sure the H02S wiring harness is not twisted more than 180 degrees and is not in contact with the exhaust.

Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

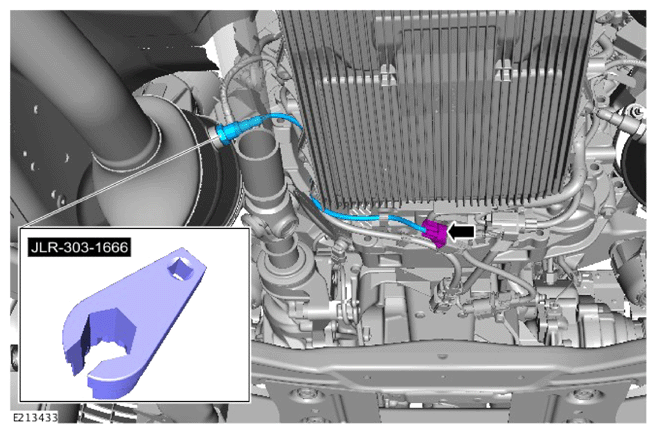

Disconnect the electrical connector and release the clips.
Using the special tool, remove the left Heated Oxygen Sensor (HO2S).

Special Tool(s): JLR-303-1666
