Fuel Rail Pressure Sensor (G2244151): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
WARNING: Be prepared to collect escaping fluids.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Always follow the fuel system health and safety precautions, when preforming any repairs to the fuel system.

    Refer to: PETROL AND PETROL-ETHANOL FUEL SYSTEMS HEALTH AND SAFETY PRECAUTIONS

  2. Depressurize the fuel system.

    Refer to: FUEL SYSTEM PRESSURE RELEASE

  3. Disconnect the startup battery ground cable.

    Refer to: STARTUP BATTERY DISCONNECT AND CONNECT

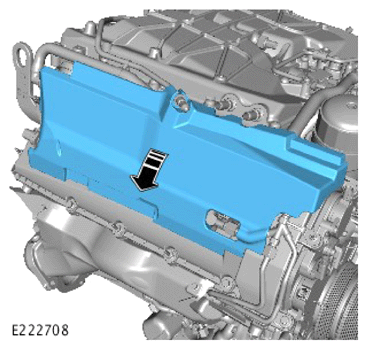

  4. G14005701Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the noise, vibration and harshness (NVH) material.

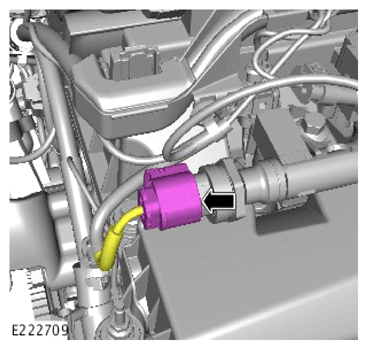

  5. G14005702Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Disconnect the electrical connector.

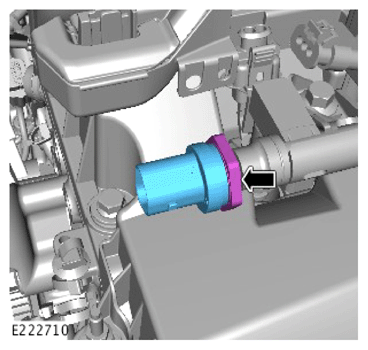

  6. G14005703Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove the fuel rail pressure sensor.
