Engine Oil Level Sensor (G2244149): Removal

WARNING: This page is about a different car, the 2019 Jaguar XE. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
  • Be prepared to collect escaping fluids.
  • Before the disconnection or removal of any components, make sure the area around joint faces and connections are clean. Plug any open connections to prevent contamination.
NOTE:
  • This procedure contains some variation in the illustrations depending on the vehicle specification, but the essential information is always correct.
  • This procedure contains illustrations showing certain components removed to provide extra clarity.
  1. Raise and support the vehicle on a suitable 2 post lift.

    Refer to: LIFTING

  2. Remove the engine undershield.

    Refer to: ENGINE UNDERSHIELD - PROJECT 8

  3. Vacuum drain the engine oil.

    Refer to: ENGINE OIL VACUUM DRAINING AND FILLING

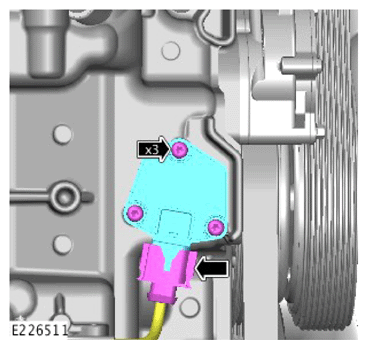

  4. G14005694Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC
    • Disconnect the electrical connector.
    • Remove the 3 bolts.
    • Remove the engine oil level sensor.

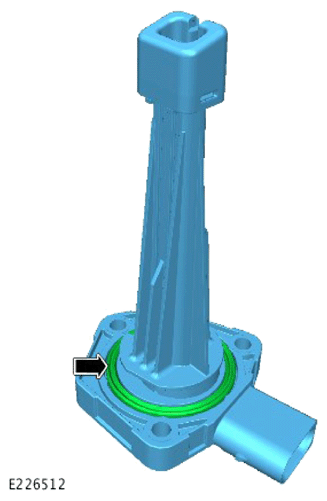

  5. G14005695Courtesy of JAGUAR LAND ROVER NORTH AMERICA, LLC

    Remove and discard the O-ring seal.
